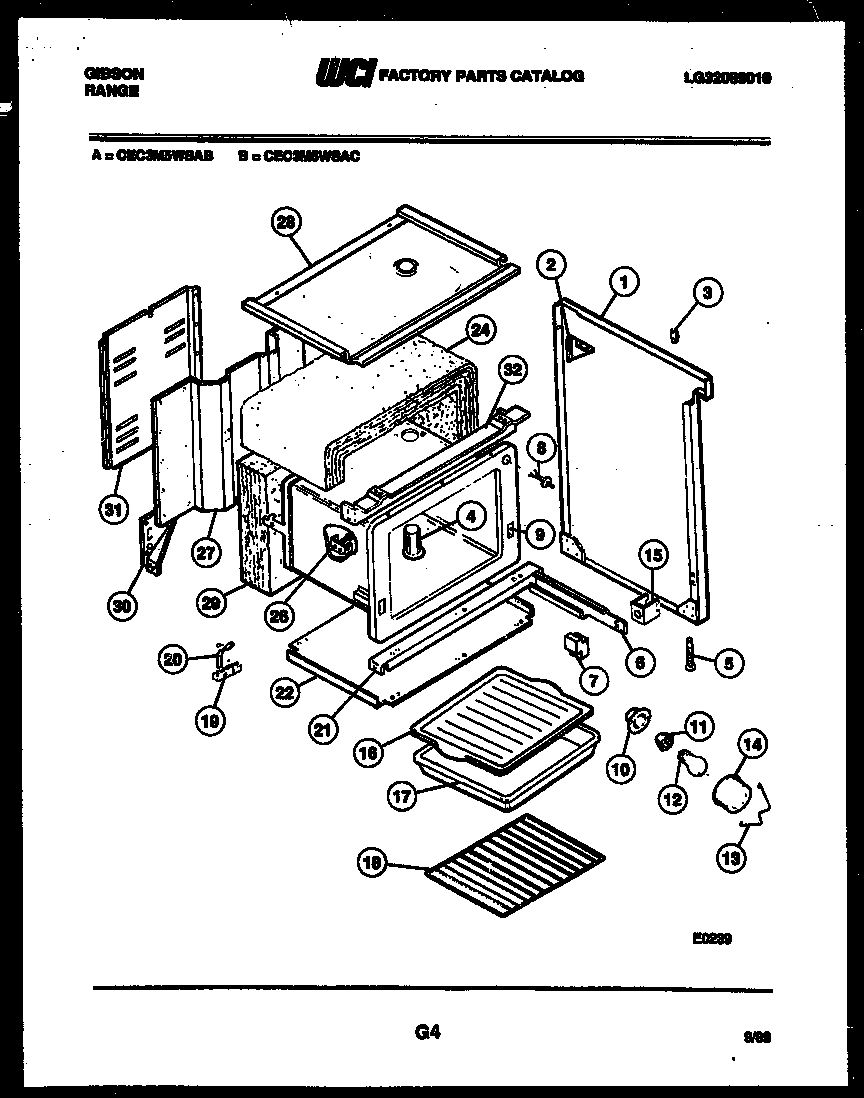

CEC3M5WSAC 06 – BODY PARTSadmin2025-04-26T08:47:02+00:00CEC3M5WSAC 06 – BODY PARTS
Products
| Position | Product |
|---|
| *18717 | ANTI-TIP KIT, (NON-ILLUSTRATED) |
| 1 | WCI K5024601 |
| 1A | PANEL-END RH-WHEAT |
| 1 | END PANEL, RH, ALMOND |
| 1A | WCI K5024602 |
| 1 | WCI K5024609 |
| 1A | END PANEL, LH, ALMOND |
| 2 | GUSSET, BACKGRD (2) |
| 3 | BUMPER |
| 4 | VENT TUBE |
| 5 | LEG, LEVELLER (4) |
| 6 | RAIL, DWR., RH |
| 6A | RAIL, DWR, LH |
| 7 | GUIDE |
| 8 | SWITCH, OVEN LIGHT |
| 9 | OVEN LINER |
| 10 | CUP, OVEN LT |
| 11 | 316116400 Frigidaire Oven Light Socket |
| 12 | 316538904 Frigidaire Oven Lamp Light |
| 13 | RETAINING WIRE |
| 14 | 5304524341 Frigidaire Lens |
| 15 | SPACER, RAIL |
| 16 | WCI 3205234 |
| 17 | WCI 3205232 |
| 18 | 316067902 Frigidaire Oven Rack |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | STRAP-GROUND |
| 21A | CHANNEL - OVEN SUPPORT LOWER |
| 22 | WCI 3203574 |
| 24 | INSULATION, WRAP |
| 26 | BRACKET THERM. BULB |
| 27 | WCI 3017575 |
| 28 | WCI K5025802 |
| 29 | INSULATION-OVEN BACK |
| 30 | WCI 3017481 |
| 30A | WCI 3017482 |
| 31A | WASHER, PADDED |
| 31 | COVER - WIRE |
| 32 | WCI 3200926 |
