CEC3M5WSAD 06 – BODY PARTS

CEC3M5WSAD 06 – BODY PARTS

Written by

in

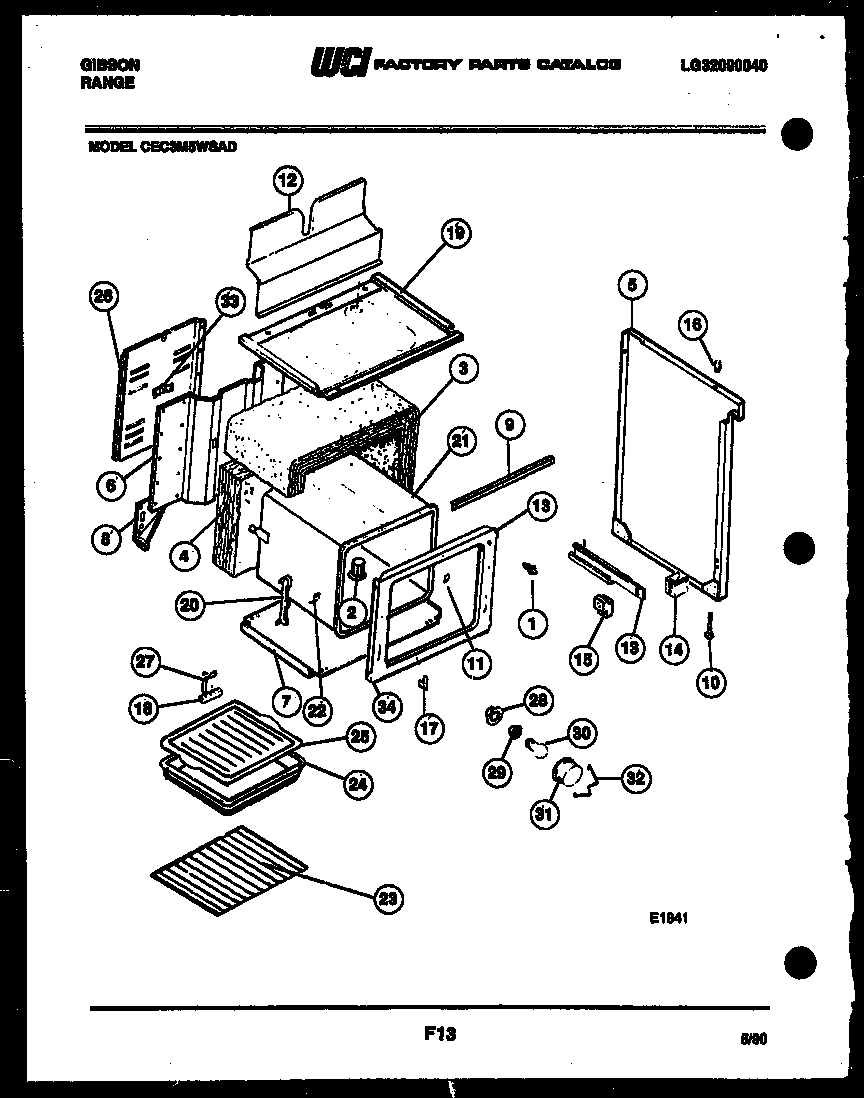

CEC3M5WSAD 06 – BODY PARTS

Products

PositionProduct
*32636WCI 5300009126
*32635ANTI-TIP KIT, (NON-ILLUSTRATED)
1WCI 5301314211
2WCI 08012541
3INSULATION – OVEN WRAP
4INSULATION
5WCI 08012536
5SIDE PANEL-RH WHEAT
5SIDE PANEL, RH WHITE
5SIDE PANEL, LH WHITE
5SIDE PANEL RH-ALMD
5SIDE PANEL LH-ALMD
6PANEL-BACK
7WCI 3206275
8WCI 3017481
8WCI 3017482
9WCI 5303207391
10LEG, LEVELLER (4)
11WCI 3202082
12WCI 3206095
13WCI 5308015746
13RAIL, DRAWER LH
14SPACER, DRAWER RAIL (2)
15GUIDE-DRAWER FRNT (2)
16BUMPER, COOKTOP (4)
17WCI 3019063
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI 08012542
21BODY-OVEN
22WCI 3201632
23316067902 Frigidaire Oven Rack
24WCI 3205539
25WCI 3205234
26WIRE, COVER
27PLATE=GROUND STRAP
28WCI 3051511
29316116400 Frigidaire Oven Light Socket
30316538904 Frigidaire Oven Lamp Light
315304524341 Frigidaire Lens
32RETAINER-LENS
33WCI 3016281
34WCI 5303207446
