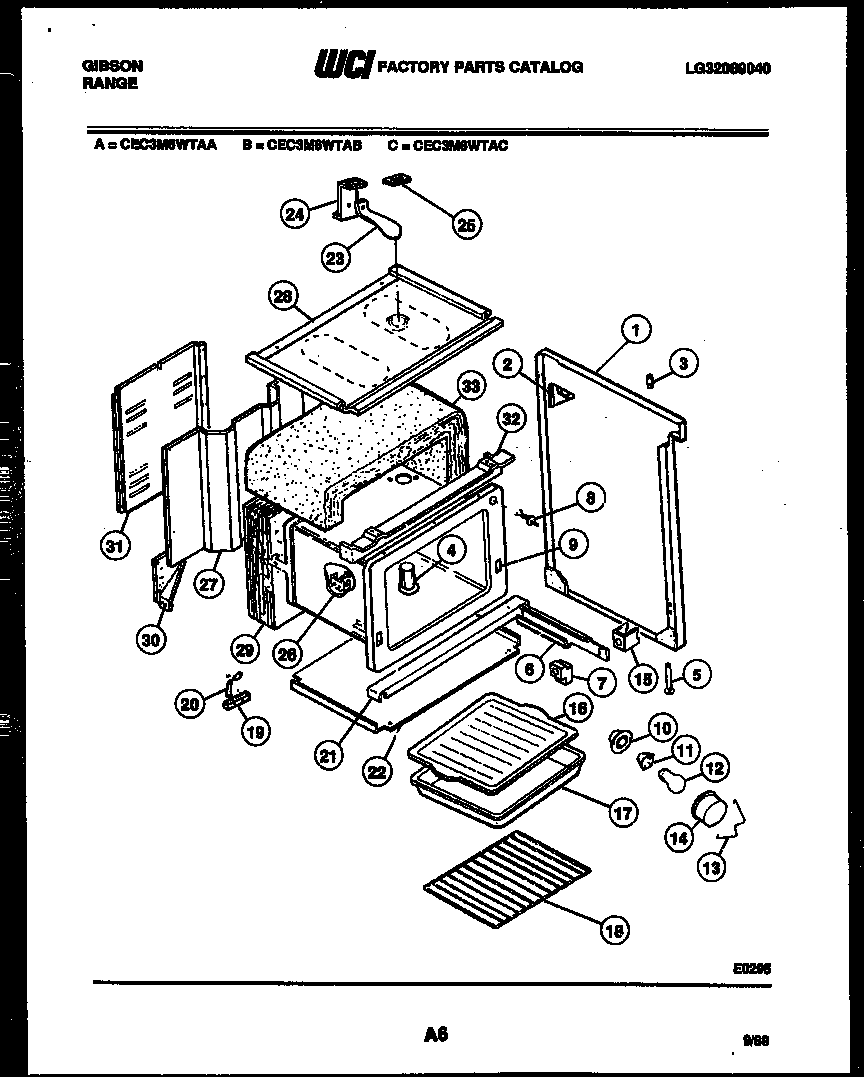

CEC3M6WTAB 06 – BODY PARTSadmin2025-04-26T08:46:20+00:00CEC3M6WTAB 06 – BODY PARTS
Products
| Position | Product |
|---|
| 1 | WCI K5024601 |
| 1A | WCI K5024602 |
| 1A | END PANEL, LH, ALMOND |
| 1 | END PANEL, RH, ALMOND |
| 2 | GUSSET, BACKGRD (2) |
| 3 | BUMPER |
| 4 | WCI K1315241 |
| 5 | LEG |
| 6A | RAIL, DRAWER LH |
| 6 | WCI 08015746 |
| 7 | GUIDE |
| 8 | SWITCH, OVEN LIGHT |
| 9 | WCI K1325538 |
| 10 | CUP, OVEN LT |
| 11 | 316116400 Frigidaire Oven Light Socket |
| 12 | 316538904 Frigidaire Oven Lamp Light |
| 13 | RETAINING WIRE |
| 14 | 5304524341 Frigidaire Lens |
| 15 | SPACER, RAIL |
| 16 | GRILLE, BROILER |
| 17 | 5304442087 Frigidaire Range Wall Oven Broil Pan and Insert |
| 18A | 316067902 Frigidaire Oven Rack |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | STRAP-GROUND |
| 21 | CHANNEL, OV. SUPT. |
| 22 | WCI 3017394 |
| 23 | WCI K5130601 |
| 24 | WCI K5130701 |
| 25 | WCI K5130801 |
| 26 | BRACKET THERM. BULB |
| 27 | WCI 3017535 |
| 28 | WCI K005025704 |
| 29 | INSULATION, BACK |
| 30A | WCI 3017482 |
| 30 | WCI 3017481 |
| 31A | COVER - WIRE |
| 31B | WASHER, PADDED |
| 32 | WCI K5009402 |
| 33 | INSULATION, WRAP |
