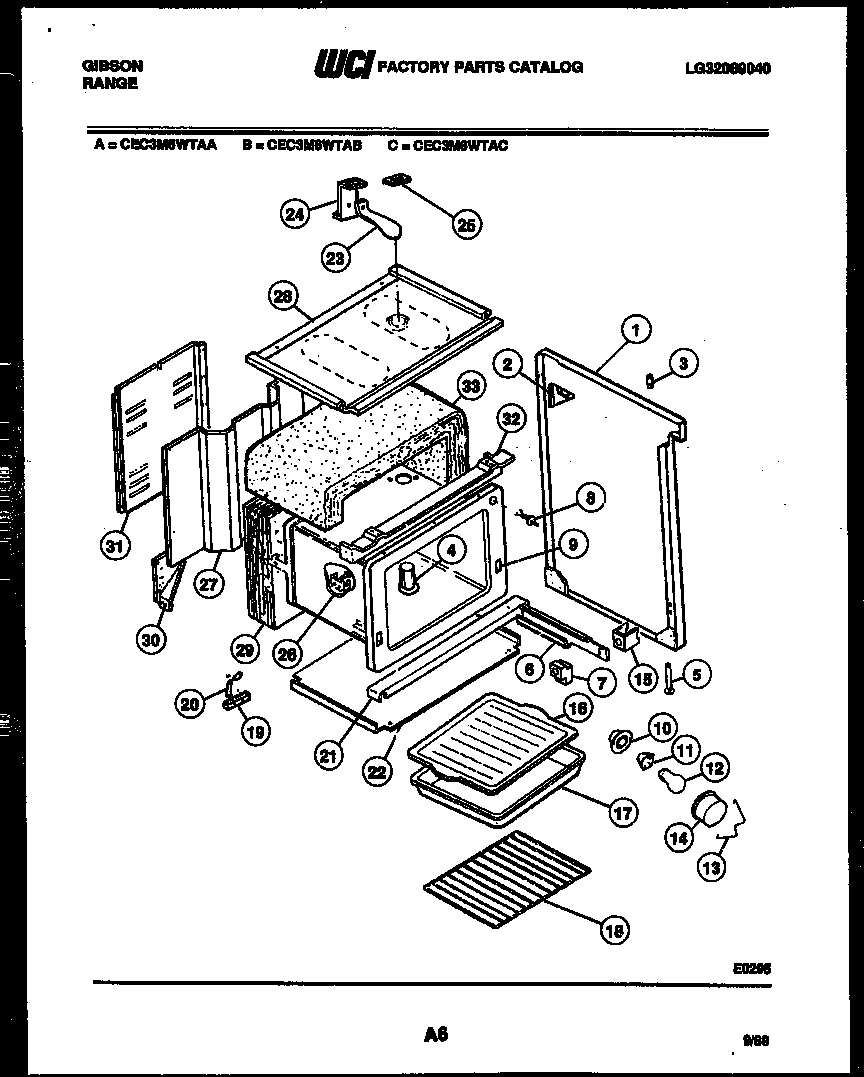

CEC3M6WTAC 06 – BODY PARTS

Products

Position	Product
1A	END PANEL, LH, ALMOND
1	END PANEL, RH, ALMOND
1	WCI K5024601
1A	WCI K5024602
2	GUSSET, BACKGRD (2)
3	BUMPER
4	WCI K1315241
5A	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	GUIDE
8	WCI 3051531
9	OVEN LINER
10	CUP, OVEN LT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINING WIRE
14	5304524341 Frigidaire Lens
15	SPACER, RAIL
16	WCI 3205234
17	WCI 3205232
18A	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WCI 3205257
22	WCI 3203574
23	WCI 3051655
24	BRACKET, VENT TUBE
25	GASKET, OVEN VENT TUBE
26	BRACKET THERM. BULB
27	WCI 3017535
28	WCI K005025704
29	INSULATION – OVEN BACK
30A	WCI 3017482
30	WCI 3017481
31B	WASHER, PADDED
31A	COVER – WIRE
32	WCI 3203209
33	INSULATION, WRAP
