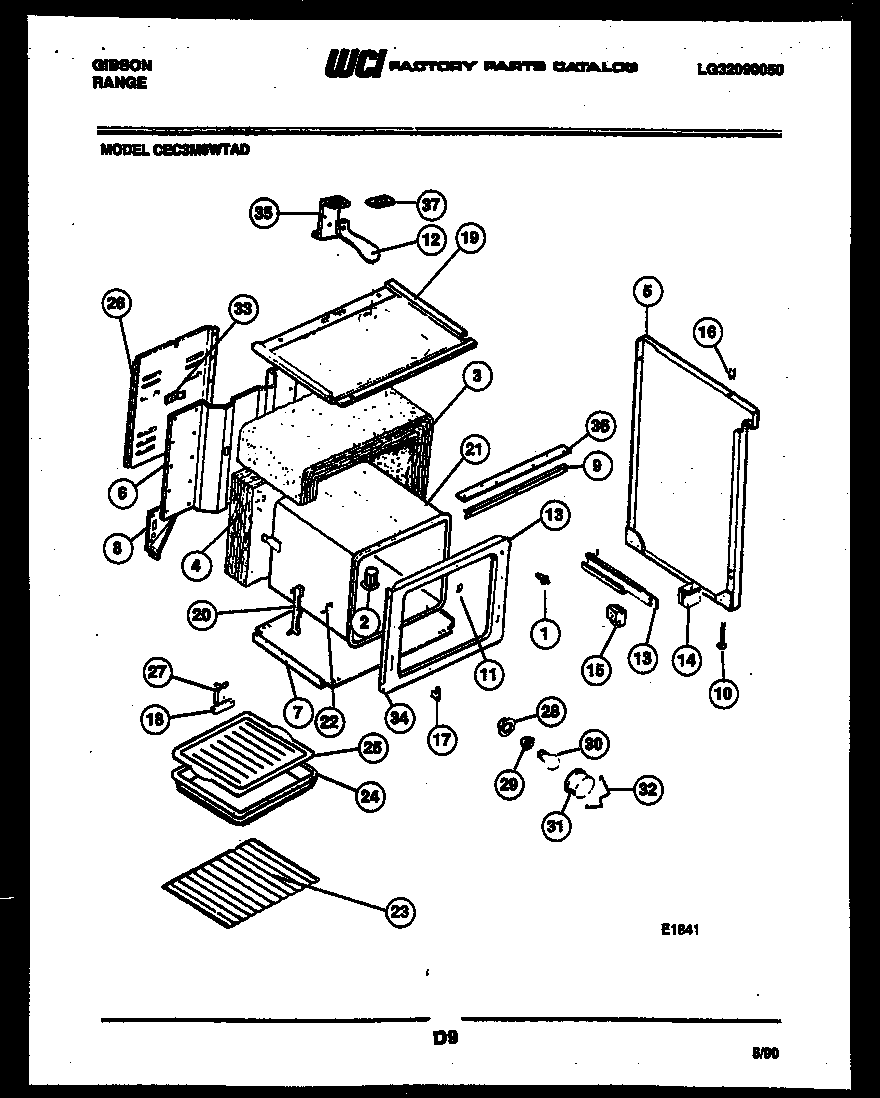

CEC3M6WTAD 06 – BODY PARTS

Products

PositionProduct
*26906ANTI-TIP KIT, (NON-ILLUSTRATED)
*26906WCI 5300009126
1WCI 5301314211
2TUBE-OVEN VENT
3INSULATION – OVEN WRAP
4INSULATION
5SIDE PANEL, RH WHITE
5ASIDE PANEL, LH WHITE
5ASIDE PANEL LH-ALMD
5SIDE PANEL RH-ALMD
6PANEL-BACK
7WCI 3206275
8WCI 3017481
8WCI 3017482
9WCI 5303207391
10LEG, LEVELLER (4)
11WCI 3202082
12WCI 3051655
13RAIL, DRAWER LH
13WCI 5308015746
14WCI 3201653
15WCI 3201654
16BUMPER, COOKTOP (4)
17WCI 3019063
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI K005025704
20WCI 3201631
21BODY-OVEN
22WCI 3201632
23316067902 Frigidaire Oven Rack
24WCI 3205539
25WCI 3205234
26WIRE, COVER
27PLATE=GROUND STRAP
28WCI 3051511
29316116400 Frigidaire Oven Light Socket
30316538904 Frigidaire Oven Lamp Light
315304524341 Frigidaire Lens
32RETAINER-LENS
33WCI 3016281
34WCI 5303207446
35BRACKET, VENT TUBE
36WCI 5303207389
37GASKET, OVEN VENT TUBE
