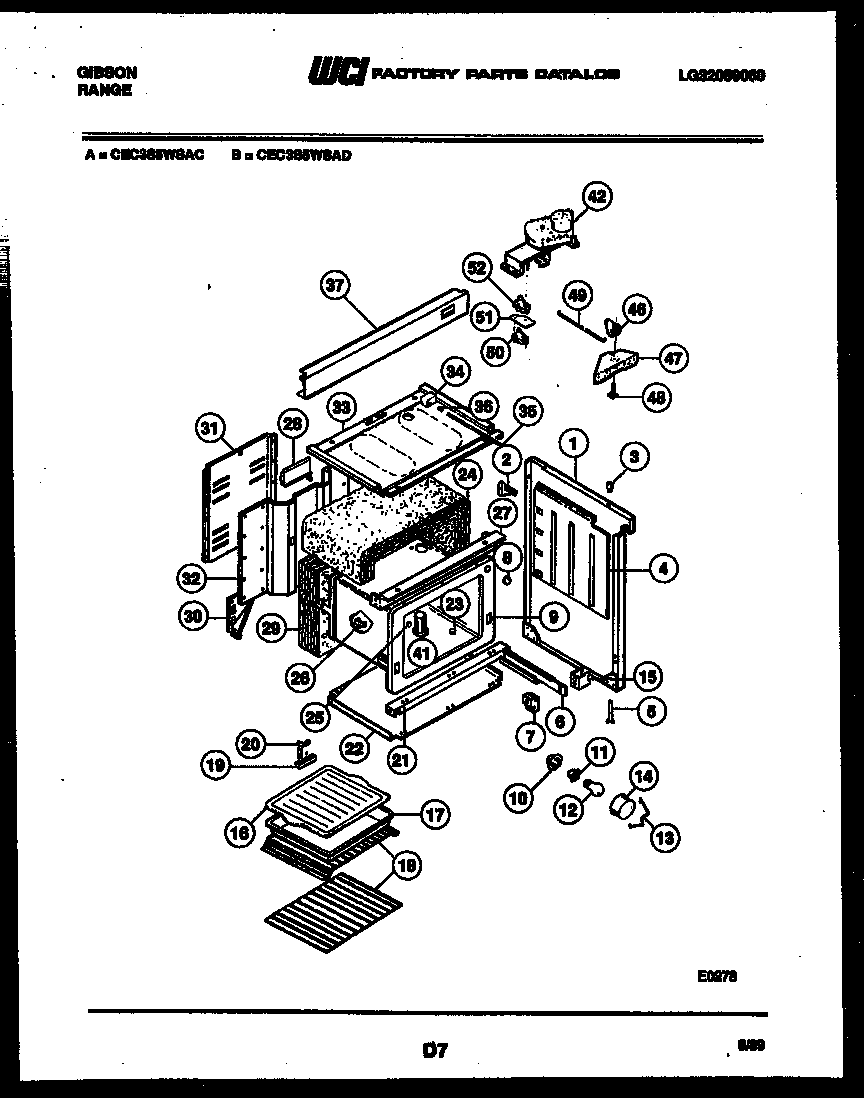

CEC3S5WSAC 06 – BODY PARTSadmin2025-04-26T08:46:41+00:00CEC3S5WSAC 06 – BODY PARTS
Products
| Position | Product |
|---|
| 1 | END PANEL, RH, ALMOND |
| 1 | WCI 08012528 |
| 1 | WCI K5024607 |
| 1 | WCI 08012530 |
| 1 | WCI 08012531 |
| 1 | WCI 08012532 |
| 1 | WCI K5024601 |
| 1 | SIDE PANEL-RH WHEAT |
| 1 | WCI 08012536 |
| 1 | WCI K5024608 |
| 2 | GUSSET, BACKGRD (2) |
| 3 | BUMPER |
| 4 | RETAINER, INSULATION (2) |
| 5 | LEG |
| 6 | WCI 08015746 |
| 7 | GUIDE |
| 9 | WCI K1325538 |
| 10 | CUP, OVEN LT |
| 11 | 316116400 Frigidaire Oven Light Socket |
| 12 | 316538904 Frigidaire Oven Lamp Light |
| 13 | RETAINING WIRE |
| 14 | 5304524341 Frigidaire Lens |
| 15 | SPACER, RAIL |
| 16 | GRILLE, BROILER |
| 17 | 5304442087 Frigidaire Range Wall Oven Broil Pan and Insert |
| 18 | 316067902 Frigidaire Oven Rack |
| 18A | RACK-OFFSET |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | STRAP-GROUND |
| 21 | CHANNEL, OV. SUPT. |
| 22 | WCI K5276502 |
| 23 | WCI 3051784 |
| 24 | WCI K1311331 |
| 25 | WCI KGM142017 |
| 26 | BRACKET THERM. BULB |
| 27 | WCI K1325636 |
| 28 | WCI K5134501 |
| 29 | INSULATION-OVEN BACK |
| 30A | GUSSET REAR, LH |
| 30 | GUSSET, RH |
| 31 | COVER - WIRE |
| 32 | BACK |
| 33 | NUT-KNURLED |
| 33A | WASHER, PADDED |
| 34 | SWITCH-DOOR |
| 35 | PUSH ROD |
| 36 | WCI 08007444 |
| 37 | WCI K5287902 |
| 41 | TUBE-OVEN VENT |
| 42 | MOTOR-LATCH |
| 46 | WCI 3202387 |
| 47 | HOUSING-DOOR LATCH |
| 48 | WCI 08012004 |
| 49 | WCI K5271201 |
| 50 | SWITCH-LOWER |
| 51 | INSULATOR |
| 52 | WCI K1167190 |
