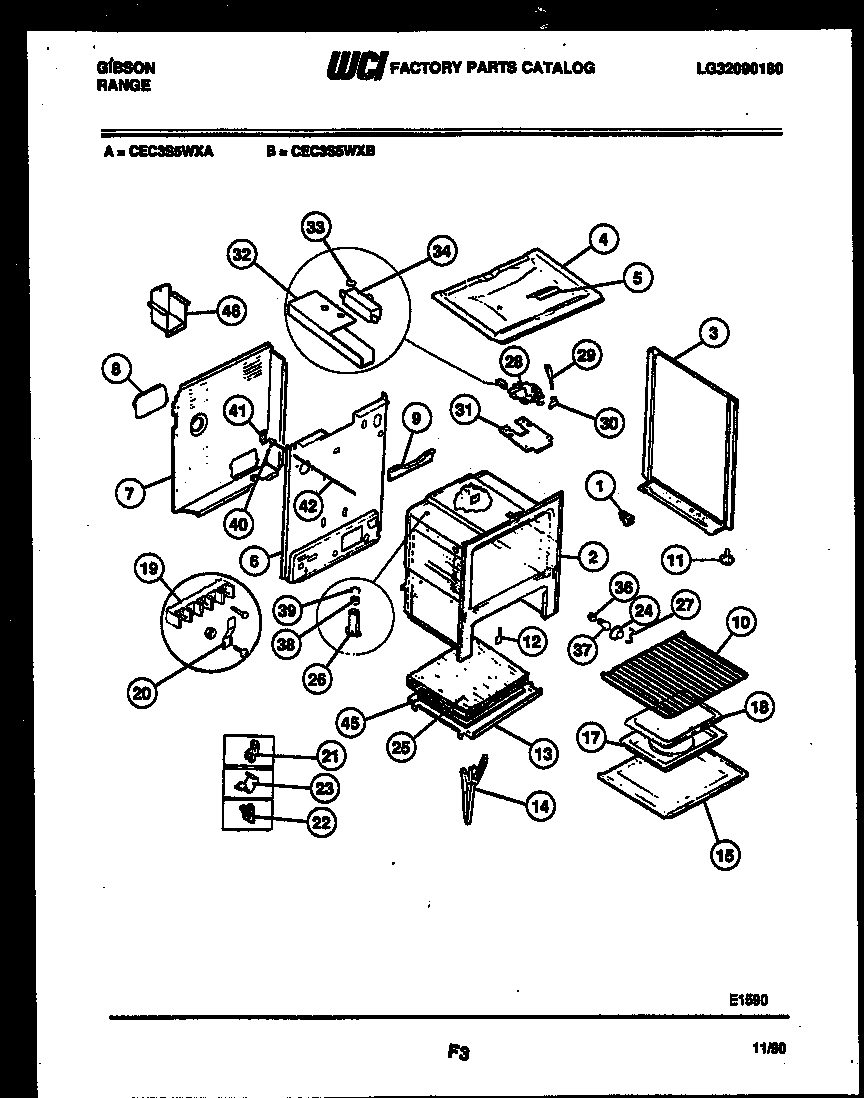

CEC3S5WXB 06 – BODY PARTS

Products

Position	Product
*33482	WCI 3131252
*33481	ANTI-TIP KIT (NOT ILLUSTRATED)
*33481	3203550 Frigidaire Oven Plug
*33481	WCI 5303206618
1	SPACER-BODYSIDE, (8)
3	PNL-BODYSIDE LH-ALMOND
3A	PNL-BODYSIDE RH-WHITE
3	PNL-BODYSIDE LH-WHITE
3A	PNL-BODYSIDE RH-ALMOND
4	WCI 08067749
5	WCI 08067757
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHAN-DOOR HINGE (2)
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
26A	DIAGRAM WIRING (NOT FOR PURCHASE) (NON-ILLUSTRATED)
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27A	INSULATION, OVEN TOP
27C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 5303051361
29	WCI 5303131357
30A	WCI 08013188
30	WCI 3203218
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	WCI 3131672
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	WCI 5303209316
45	WCI 3200848
45B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45A	INSULATION, OVEN WRAPPER
46	WCI 3203582
