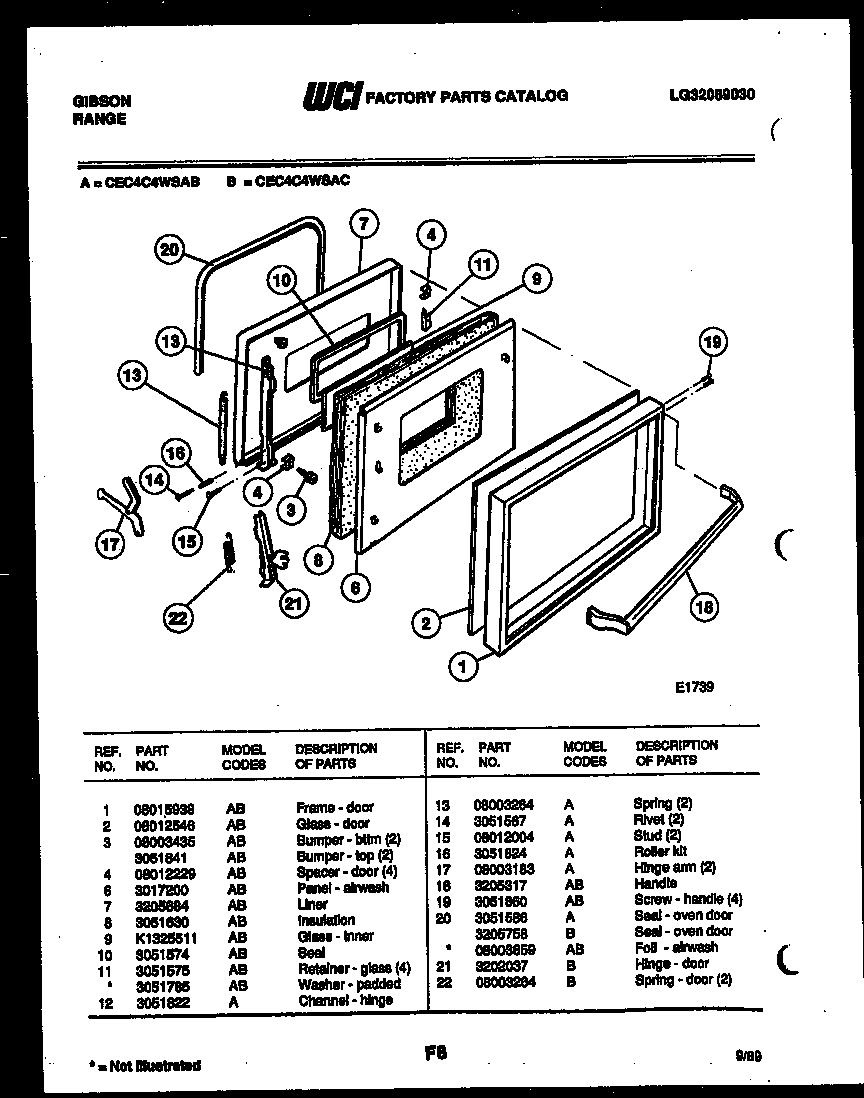

CEC4C4WSAC 03 – DOOR PARTS

Written by

Products

Position	Product
1	FRAME – DOOR
2	GLASS – OUTER
3	WCI 08003435
3A	BUMPER-WINDOW TOP
4	WCI 08012229
6	WCI 3017200
7	WCI 3205684
8	INSULATION-OVEN BACK
9	GLASS – INNER DOOR
10	SEAL WINDOW
11	RETAINER – GLASS (4)
11A	WASHER-PADDED (3) (NON-ILLUSTRATED)
18	WCI 3205317
19	SCREW HANDLE (4)
20	WCI 3205758
20A	WCI 08003659
21	HINGE – DOOR
22	WCI 08003264
