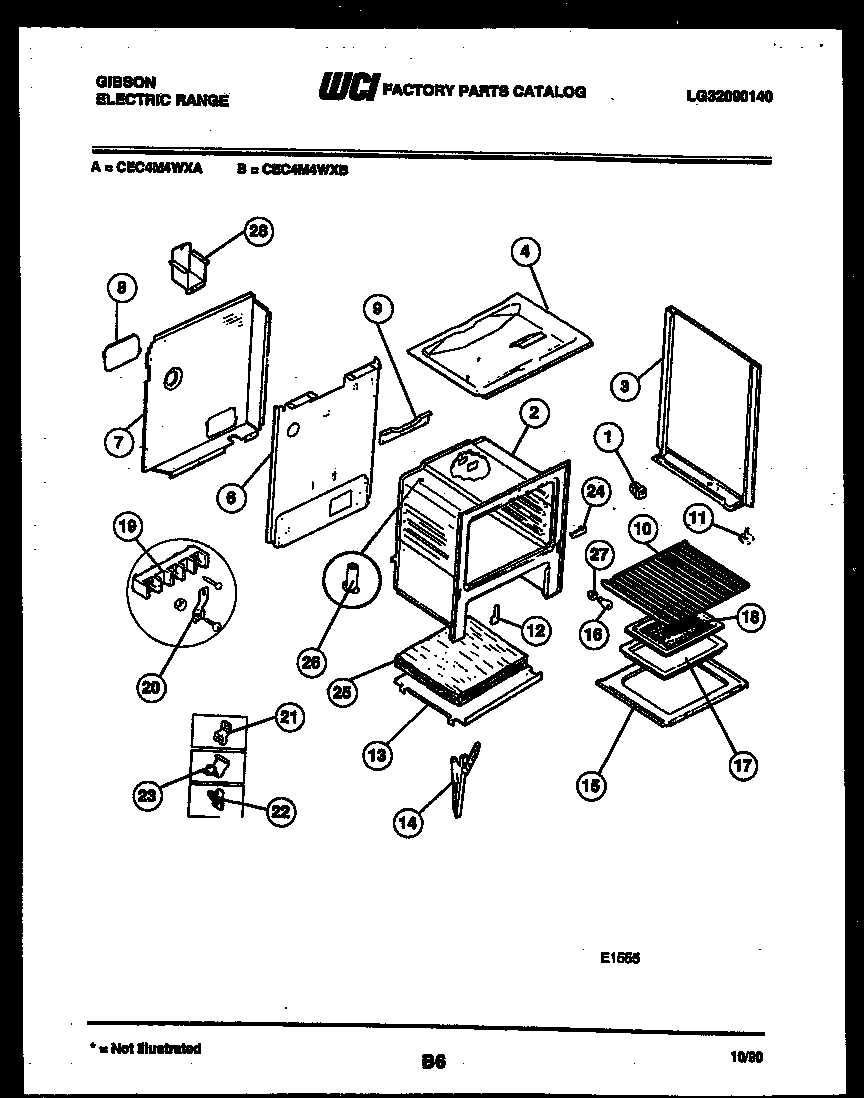

CEC4M4WXB 04 – BODY PARTS

Products

PositionProduct
*22049ANTI-TIP KIT (NOT ILLUSTRATED)
*220493131903 Frigidaire Door/Drawer Bumper
*22049INSUL – OVEN BACK (NON-ILLUSTRATED)
*22049316205500 Frigidaire Oven Nut
*22049INSULATION, OVEN WRAPPER
*22049WCI 5303206618
*22049SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
*22049WCI 3131252
*220493203550 Frigidaire Oven Plug
1SPACER-BODYSIDE, (8)
3PNL-BODYSIDE LH-WHITE
3PNL-BODYSIDE LH-ALMOND
3APNL-BODYSIDE RH-WHITE
3APNL-BODYSIDE RH-ALMOND
4WCI 3017926
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHANL-DR HNG (2)
15PANEL-OVEN BOTTOM
16316538904 Frigidaire Oven Lamp Light
16AWCI 19100210071
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 3051344
27316116400 Frigidaire Oven Light Socket
28WCI 3203582
