CEC4M6WXA 06 – BODY PARTS

CEC4M6WXA 06 – BODY PARTS

Written by

in

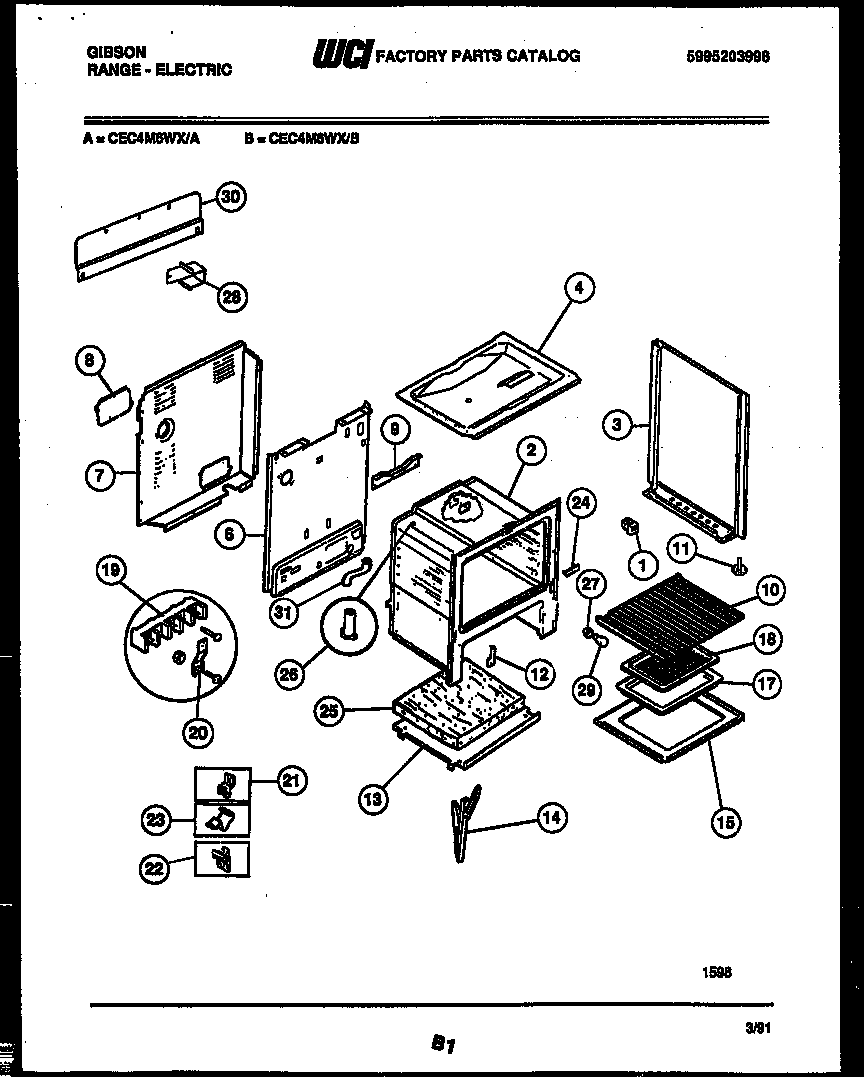

CEC4M6WXA 06 – BODY PARTS

Products

PositionProduct
*45889WCI 5303271873
*45889WCI 19100210071
1SPACER-BODYSIDE, (8)
3PNL-BODYSIDE LH-ALMOND
3APNL-BODYSIDE RH-ALMOND
3PNL-BODYSIDE LH-WHITE
3APNL-BODYSIDE RH-WHITE
4WCI 5303271877
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 3203401
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
233205821 Frigidaire Clip
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 5303271871
27316116400 Frigidaire Oven Light Socket
28WCI 3203582
29GWCI 5303206618
29H3203550 Frigidaire Oven Plug
29AINSULATION, OVEN WRAPPER
29E316205500 Frigidaire Oven Nut
29C3131903 Frigidaire Door/Drawer Bumper
29BINSUL – OVEN BACK (NON-ILLUSTRATED)
29FANTI-TIP KIT (NOT ILLUSTRATED)
29DSCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
29WCI 3208582
30WCI 3131252
31WCI 5303271872
