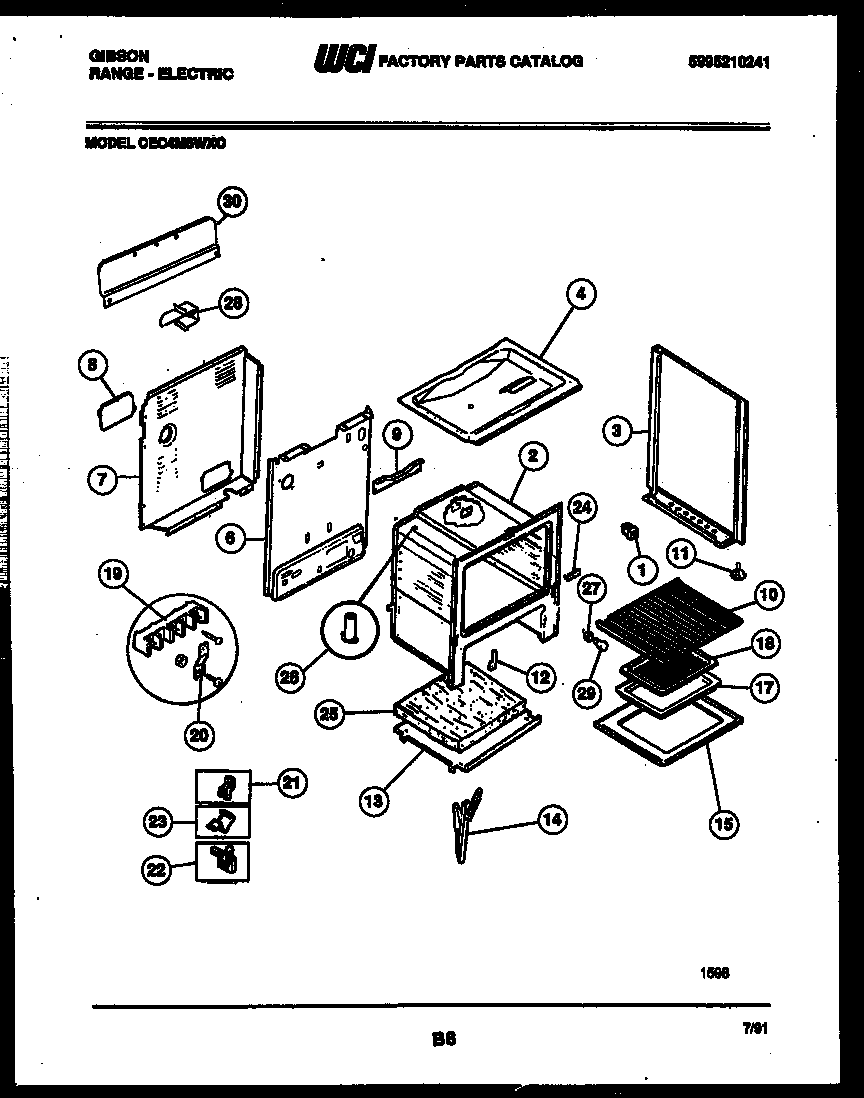

CEC4M6WXC 06 – BODY PARTS

Products

Position	Product
*35083	WCI 5303271873
*35083	WCI 19100210071
1	SPACER-BODYSIDE, (8)
3	PNL-B/S-LH-WHITE
3	WCI 5303269545
3A	WCI 5303269543
3A	PNL-B/S-RH-WHITE
4	WCI 5303271899
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHAN-DOOR HINGE (2)
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 3203401
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	3205821 Frigidaire Clip
24	COVER-OVEN FRONT
25	316403803 Frigidaire Insulation
26	WCI 5303271871
27	316116400 Frigidaire Oven Light Socket
28	WCI 3203582
29H	3203550 Frigidaire Oven Plug
29	316538904 Frigidaire Oven Lamp Light
29A	INSULATION, OVEN WRAPPER
29B	INSUL – OVEN BACK (NON-ILLUSTRATED)
29G	WCI 5303206618
29E	316205500 Frigidaire Oven Nut
29D	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
29C	3131903 Frigidaire Door/Drawer Bumper
29F	ANTI-TIP KIT (NOT ILLUSTRATED)
30	WCI 3131252
31	WCI 5303271872
