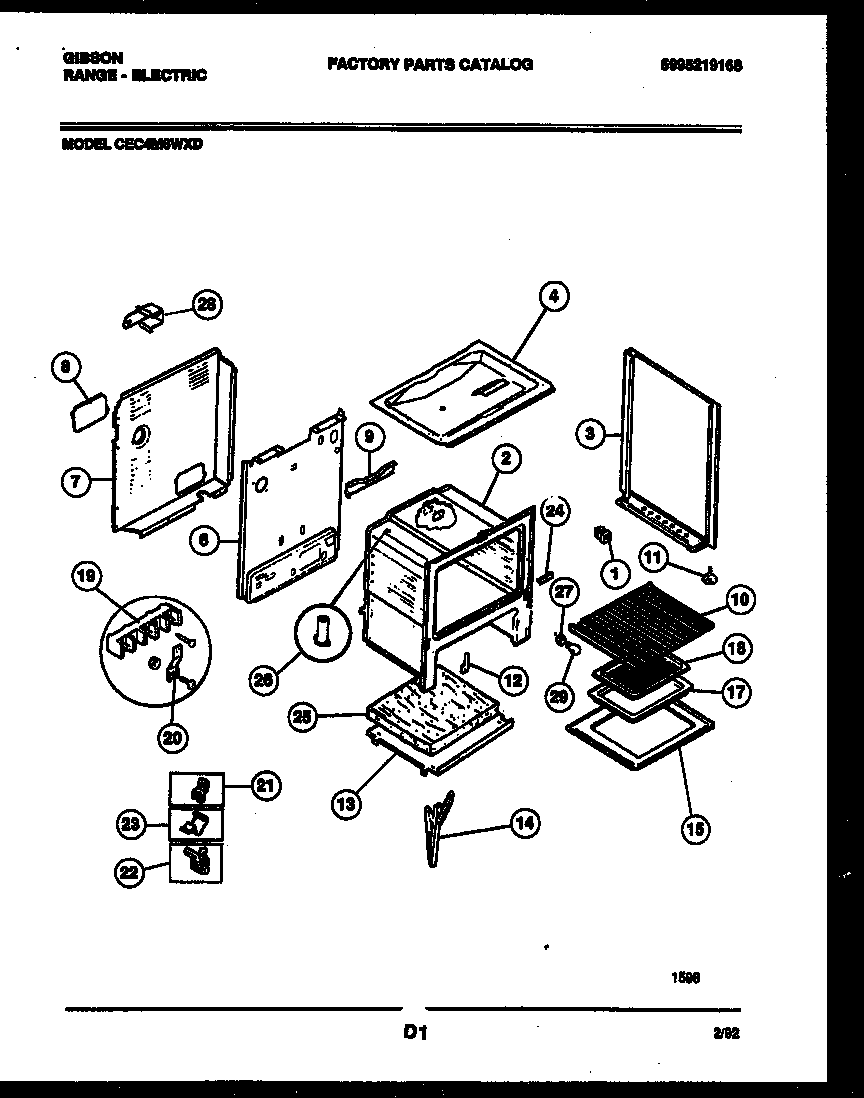

CEC4M6WXD 06 – BODY PARTS

Products

PositionProduct
*58206INSULATION, OVEN WRAPPER
*58206INSUL – OVEN BACK (NON-ILLUSTRATED)
*582063131903 Frigidaire Door/Drawer Bumper
*58207WCI 5303206618
*58207WCI 3131252
*58206316205500 Frigidaire Oven Nut
*58207ANTI-TIP KIT (NOT ILLUSTRATED)
*58207WCI 19100210071
*582073203550 Frigidaire Oven Plug
*58207WCI 5303271872
*58207WCI 5303271873
*58206WCI 5303280311
1SPACER-BODYSIDE, (8)
3APNL-B/S-RH-WHITE
3PNL-B/S-LH-WHITE
3AWCI 5303269543
3WCI 5303269545
4WCI 5303271899
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14Hinge,oven door ,(2)
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
233205821 Frigidaire Clip
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 5303271871
27316116400 Frigidaire Oven Light Socket
28WCI 3203582
29316538904 Frigidaire Oven Lamp Light
