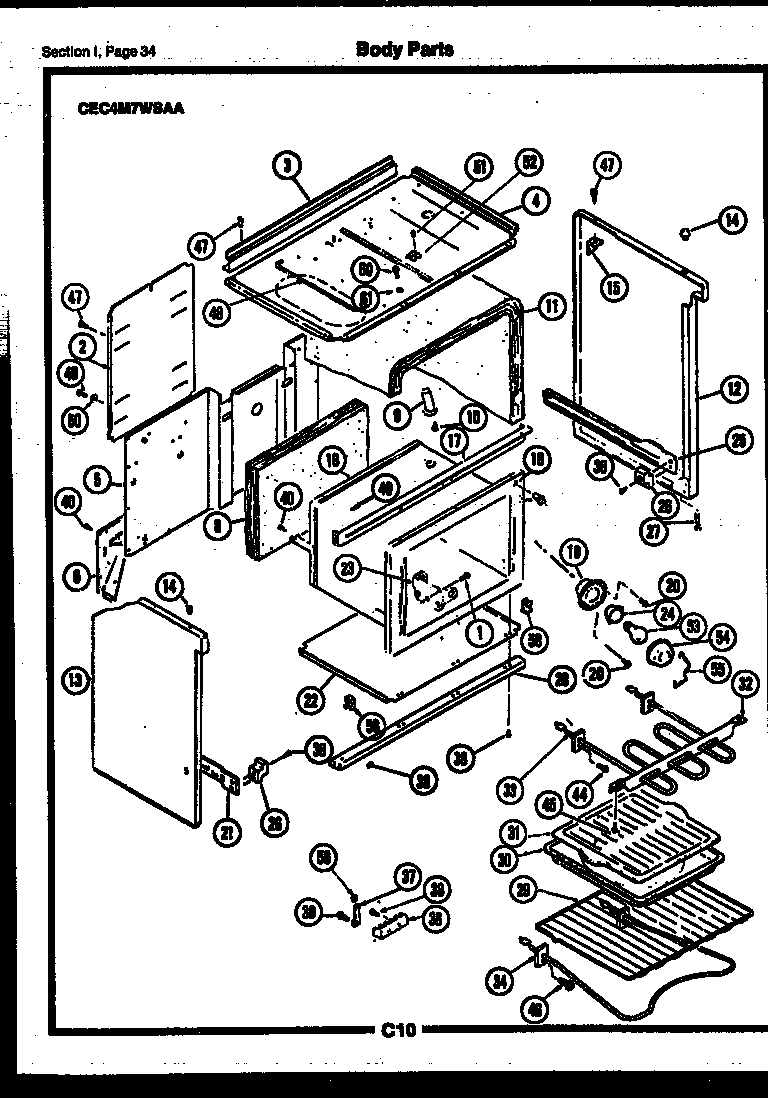

CEC4M7WSAA 20 – BODY PARTS

Products

Position	Product
*11565	WCI K5035916
*11565	WCI K1322669
*11562	WCI K1326023
2	WCI K1315110
3	WCI K1315109
4	WCI K5025802
5	WCI K5137902
6	WCI K1325114
6A	WCI K1325113
8	INSULATION, BACK
9	WCI K1311218
10	SCREW
11	INSULATION, WRAP
12	WCI K5024601
13	WCI K5024602
14	BUMPER
15	GUSSET, BACKGRD (2)
16	WCI K1325538
17	CHANNEL-OVEN SUPT
18	SWITCH, OVEN LIGHT
19	CUP, OVEN LT
21	WCI K1324090
22	WCI K1315107
23	BRACKET THERM. BULB
24	316116400 Frigidaire Oven Light Socket
25	WCI K1324089
26	GUIDE
27	LEG
28	CHANNEL, OV. SUPT.
29	RACK (2)
30	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
31	GRILLE, BROILER
32	HANGER
33	5303051516 Frigidaire Broil Element
34	5303051519 Frigidaire Oven 2600W Bake Element
36	5304409888 Frigidaire Oven Terminal Block with Hardware
37	STRAP-GROUND
43	SCREW
46	08002868 Frigidaire 0 Screw Assembly
48	ROD
49	SCREW
50	WCI K1099962
51	WCI K1164550
52	RETAINER
53	316538904 Frigidaire Oven Lamp Light
54	5304524341 Frigidaire Lens
55	RETAINING WIRE
56	WCI K1266
58	SPACER, RAIL
60	WASHER, PADDED
