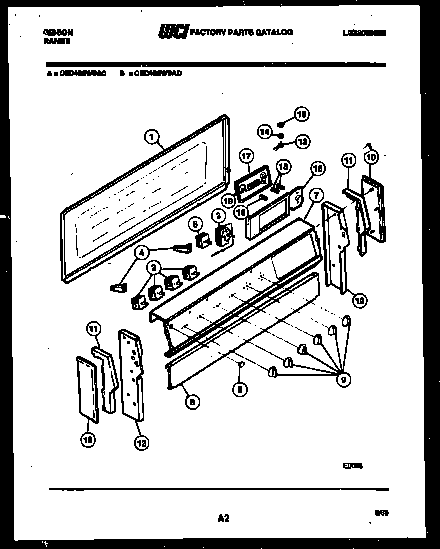

CEC4S6WSAD 02 – BACKGUARD

CEC4S6WSAD 02 – BACKGUARD

Written by

in

CEC4S6WSAD 02 – BACKGUARD

Products

PositionProduct
1COVER-WIRE, UPPER
25303935086 Frigidaire Oven Top Burner Switch Kit
3THERMOSTAT
4ASIGNAL LIGHT, OVEN
4SIGNAL LIGHT-SURF UNIT
5LENS – SIGNAL LIGHT (2)
6SWITCH-SELECTOR
7WCI K5141502
8PANEL BACKSPLASH, WHEAT
8PANEL BACKSPLASH, ALMOND
8WCI K5137604
8PANEL BACKSPLASH, COFFEE
8PANEL BACKSPLASH, WHITE
9KNOB-SURFACE UNIT (4)
9AWCI K5159402
9BKNOB-SELECT SW
10AWCI 3051674
10WCI 3051675
11WCI 3051673
11AWCI 3051672
12SUPPORT-BACKGRD LH
12ASUPT – BACKGUARD RH
13WCI 3205397
14NUT – HEX – LAMP SW. (2)
15NUT-KNURLED
16BRACKET MOUNTING
17WCI K5153401
18WCI K1167946
19WCI K1167584
