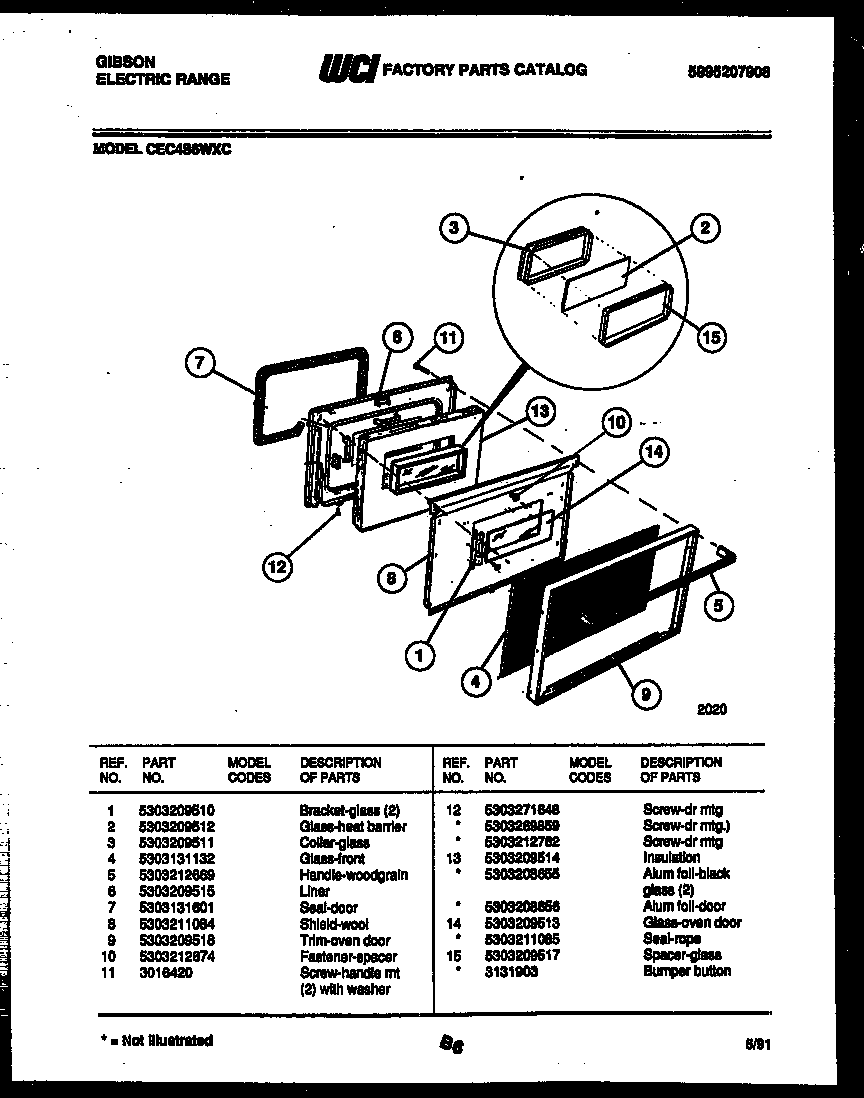

CEC4S6WXC 03 – DOOR PARTS

Products

Position	Product
*37801	3131903 Frigidaire Door/Drawer Bumper
1	BRACKET-GLASS MTG
2	GLASS-OVEN DOOR, HEAT BARRIER, (2)
3	WCI 5303209511
4	GLASS FRNT
5	WCI 5303212669
6	WCI 5303209515
7	5303131601 Frigidaire Oven Seal
8	SHIELD-INSULATION
9	WCI 5303209518
10	FSTNR-NYLON SPACER (NON-ILLUSTRATED)
11	SCREW - HANDLE (2)
12A	5303300265 Frigidaire Oven Screw
12	5303271648 Frigidaire Oven Screw
12A	WCI 5303269859
13	INSULATION-OVEN DOOR
13B	REFLECTOR, ALUMINUM FOIL
13A	5303208655 Frigidaire Reflector Assembly
14A	SEAL-ROPE, 0.25 DIA
14	GLASS-OVEN DOOR, INNER
15	WCI 5303209517
