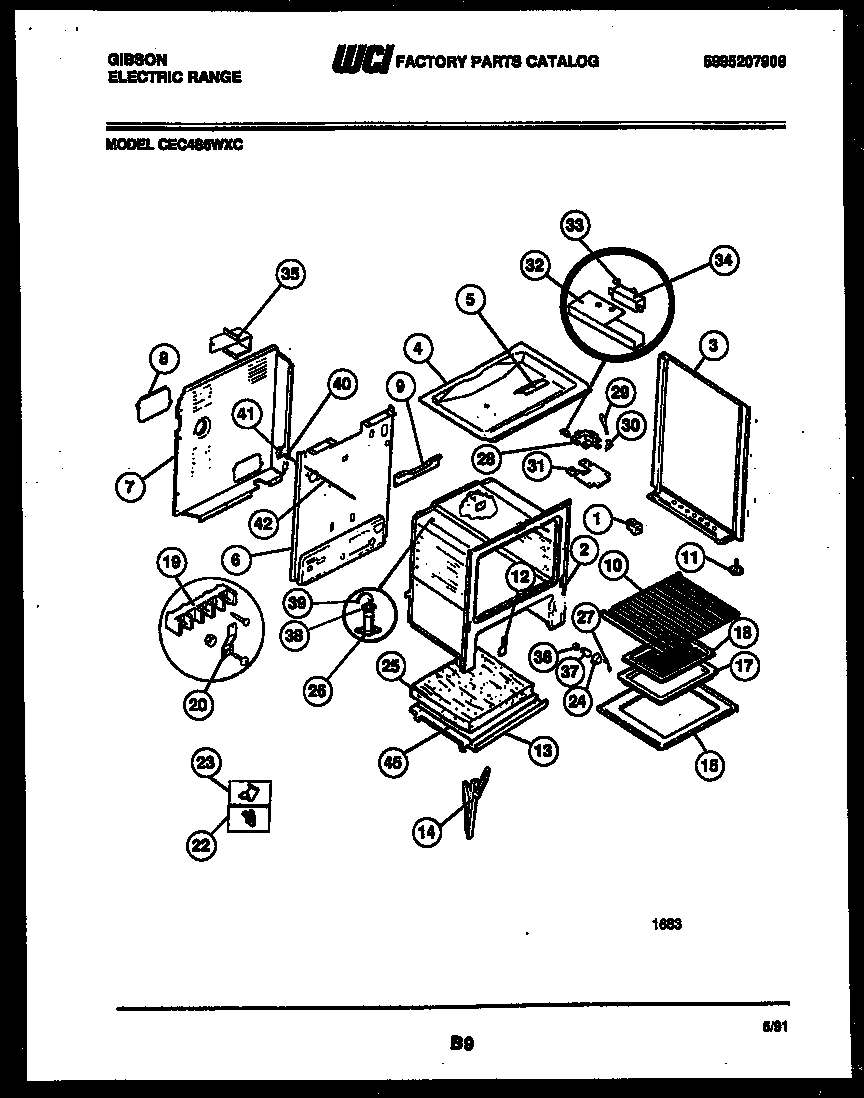

CEC4S6WXC 06 – BODY PARTS

CEC4S6WXC 06 – BODY PARTS

Written by

in

CEC4S6WXC 06 – BODY PARTS

Products

PositionProduct
*37814WCI 5303206618
*37813FASTENER-EDGE MTG (NOT ILLUSTRATED)
*378133203550 Frigidaire Oven Plug
*37815DIAGRAM WIRING (NOT FOR PURCHASE) (NON-ILLUSTRATED)
*37813SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*37813INSULATION, OVEN TOP
*37813ANTI-TIP KIT (NOT ILLUSTRATED)
*37815WCI 3131252
1SPACER-BODYSIDE, (8)
3PNL-B/S-LH-WHITE
3APNL-B/S-RH-WHITE
3WCI 5303269545
3AWCI 5303269543
4WCI 5303271658
5WCI 08067757
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 3203401
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26WCI 3051344
27CINSULATION, OVEN WRAPPER
27B3131903 Frigidaire Door/Drawer Bumper
27AINSULATION OVEN BACK (NON-ILLUSTRATED)
27RETAINER-GLASS
28WCI 5303015361
29WCI 5303131357
30AWCI 08013188
30WCI 3203218
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FSTNR-PUSH ON
34WCI 3131672
35WCI 3203582
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39WCI 08010606
40SWITCH-OVEN LITE DOOR
41WCI 5303131289
42WCI 5303209316
45WCI 3200848
