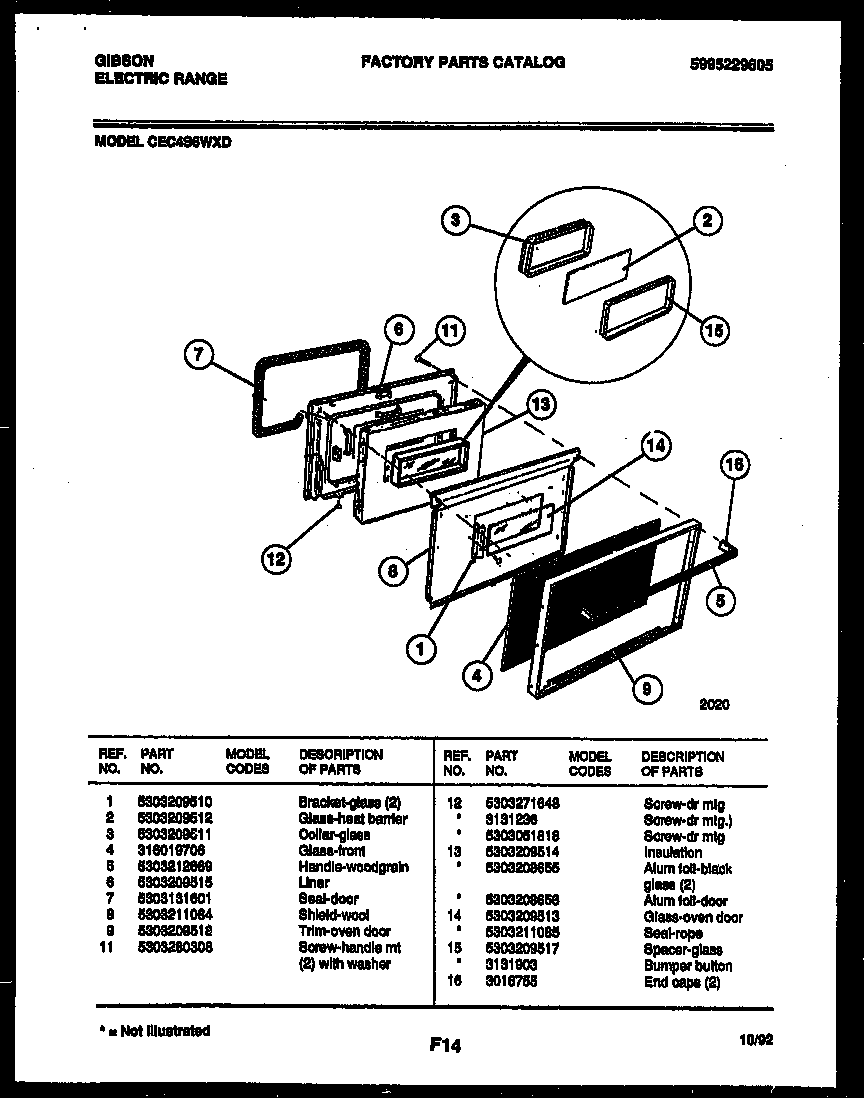

CEC4S6WXD 03 – DOOR PARTS

Products

Position	Product
1	BRACKET-GLASS MTG
2	GLASS-OVEN DOOR, HEAT BARRIER, (2)
3	WCI 5303209511
4	WCI 316019706
5	WCI 5303212669
6	WCI 5303209515
7	5303131601 Frigidaire Oven Seal
8	SHIELD-INSULATION
9	WCI 5303209518
11	WCI 5303280308
12A	WCI 3131236
12B	5303300265 Frigidaire Oven Screw
12	5303271648 Frigidaire Oven Screw
13	INSULATION-OVEN DOOR
13B	REFLECTOR, ALUMINUM FOIL
13A	5303208655 Frigidaire Reflector Assembly
14A	SEAL-ROPE, 0.25 DIA
14	GLASS-OVEN DOOR, INNER
15A	3131903 Frigidaire Door/Drawer Bumper
15	WCI 5303209517
16	316137003 Frigidaire Range / Cooktop End Cap
