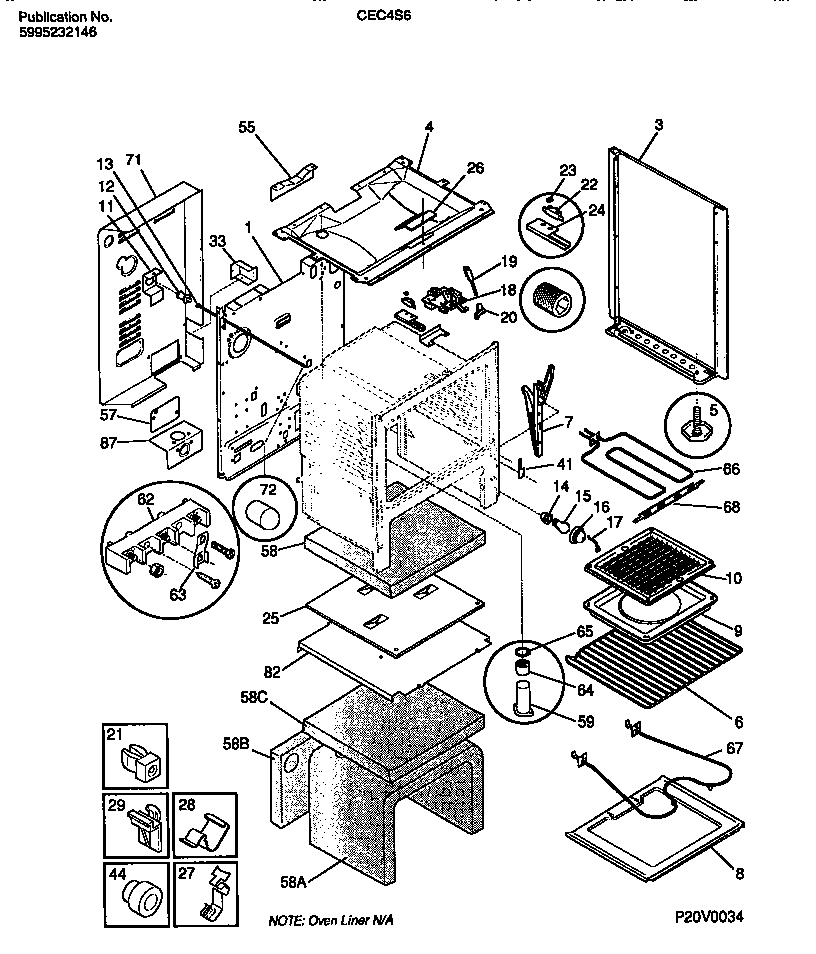

CEC4S6WXE 03 – BODY

CEC4S6WXE 03 – BODY

Written by

in

CEC4S6WXE 03 – BODY

Products

PositionProduct
*571213203550 Frigidaire Oven Plug
*571225303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 3203082
3PNL-B/S-RH-WHITE
3APNL-B/S-LH-WHITE
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3CFASTENER-EDGE MTG (NOT ILLUSTRATED)
4WCI 5303271658
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AANTI-TIP KIT (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
11WCI 5303131289
12SWITCH-OVEN LITE DOOR
13WCI 5303269501
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 5303015361
18ASHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20AWCI 08013188
20WCI 3203218
21SPACER-BODYSIDE, (8)
22ASTUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58316403803 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
58CINSULATION, OVEN TOP
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
59WCI 3051344
625304409888 Frigidaire Oven Terminal Block with Hardware
62A316205500 Frigidaire Oven Nut
63PLATE-GROUND STRAP
64WCI 08067810
65WCI 08010606
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71AWCI 08067961
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
