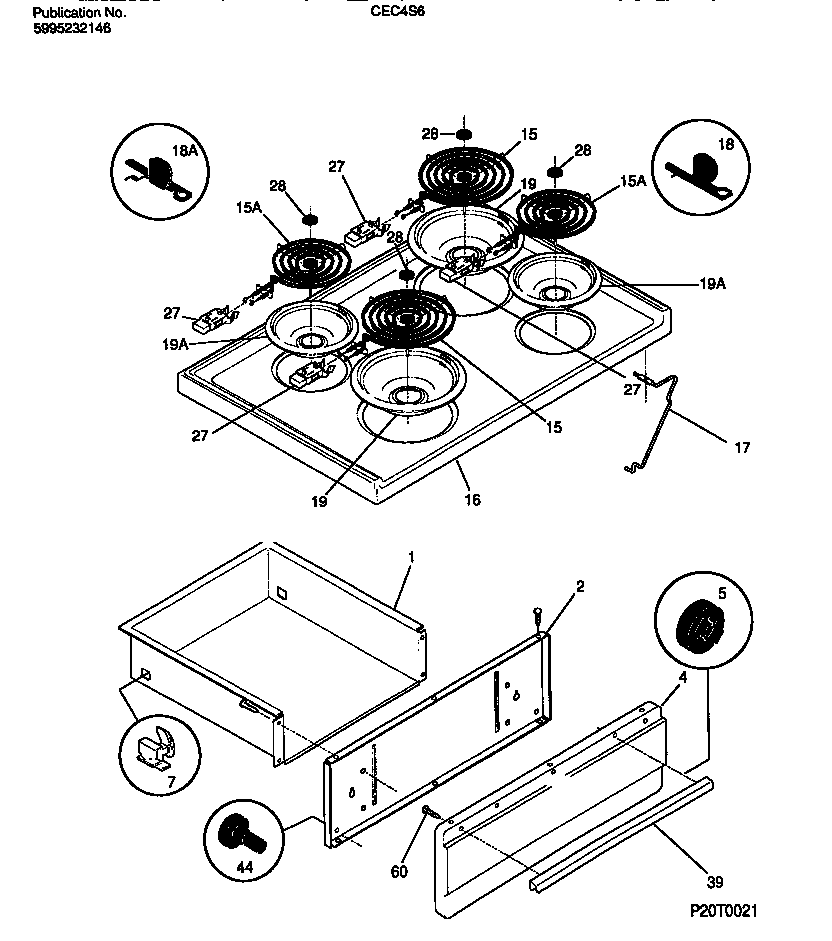

CEC4S6WXE 04 – TOP/DRAWER

Products

Position	Product
*57124	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PNL-DRAWER (WHTE)
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
15	5308011964 Frigidaire Surface Element P1
16	WCI 5303013511
17	ROD-MAIN SUPPORT (2)
18	BRACKET-HINGE,MAIN TOP RH
18A	BRACKET-HINGE,MAIN TOP LH
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
39	HANDLE
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
