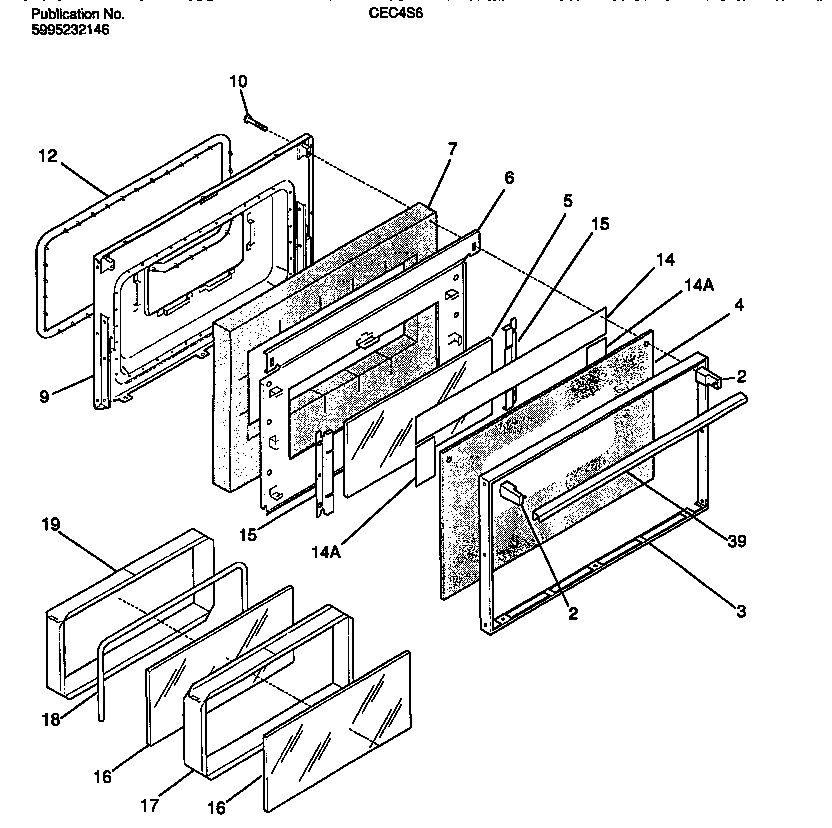

CEC4S6WXE 05 – DOOR

CEC4S6WXE 05 – DOOR

Written by

in

CEC4S6WXE 05 – DOOR

Products

PositionProduct
*57125SCREW, CR PAN HD SEMS, 8-32BP X 1.00
2316137003 Frigidaire Range / Cooktop End Cap
3WCI 5303209518
3AWCI 5303269859
4WCI 316019706
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9A5303300265 Frigidaire Oven Screw
9WCI 5303209515
9B5303271648 Frigidaire Oven Screw
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
14A5303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 5303209511
39WCI 5303285070
