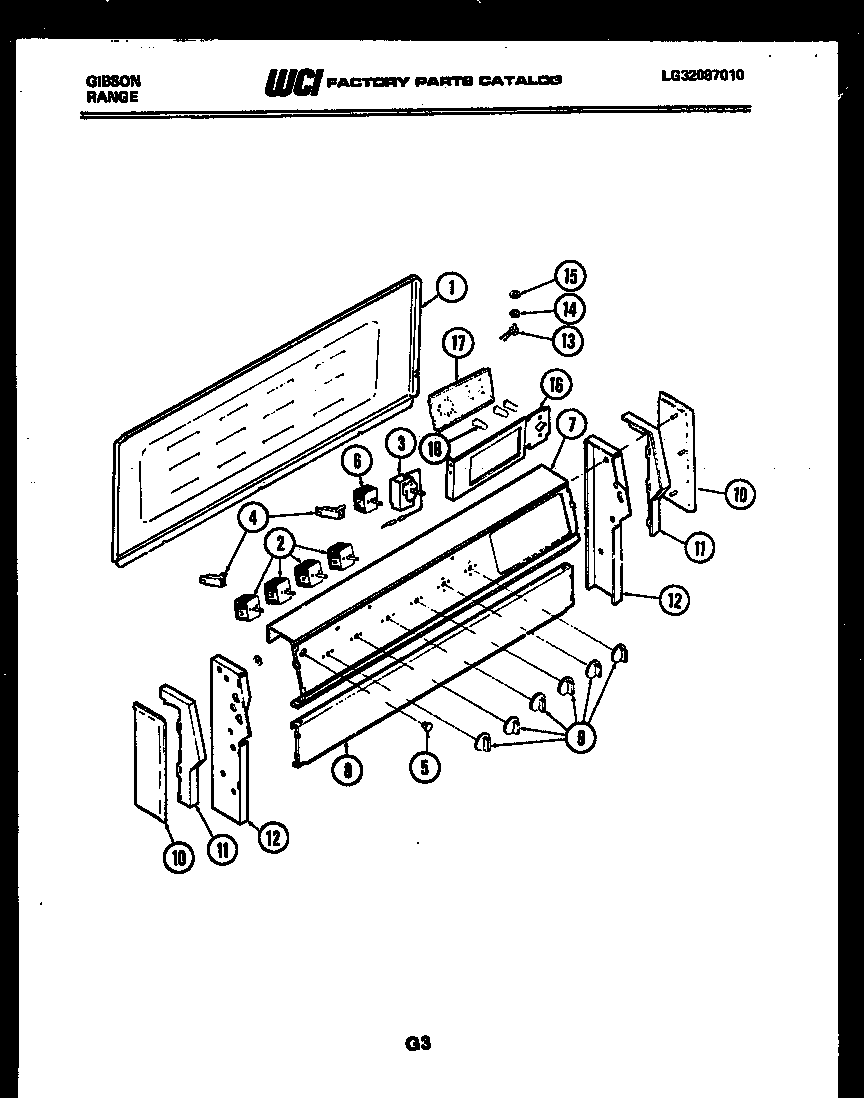

CEC4S7WTAA 02 – BACKGUARD

CEC4S7WTAA 02 – BACKGUARD

Written by

in

CEC4S7WTAA 02 – BACKGUARD

Products

PositionProduct
1COVER, WIRE
2SWITCH-SURFACE UNIT (4)
2WCI K5130501
3THERMOSTAT
4SIGNAL LIGHT, OVEN
4SIGNAL LIGHT-SURF UNIT
4SIGNAL LIGHT – OVEN
5WCI K5139001
6SWITCH-OVEN SELECT
7WCI K5312701
8WCI K5137610
8WCI K5137614
9WCI K5159402
9KNOB-SELECT SW
9WCI K5159306
10WCI K5128002
10WCI K5128001
11WCI K5128106
11WCI K5128105
12SUPPORT-BACKGRD RH
12WCI K5127702
13WCI K1312868
14NUT – HEX – LAMP SW. (2)
15WCI K5051701
16BRACKET MOUNTING
17WCI K5141601
18KNOB-SURFACE UNIT (4)
