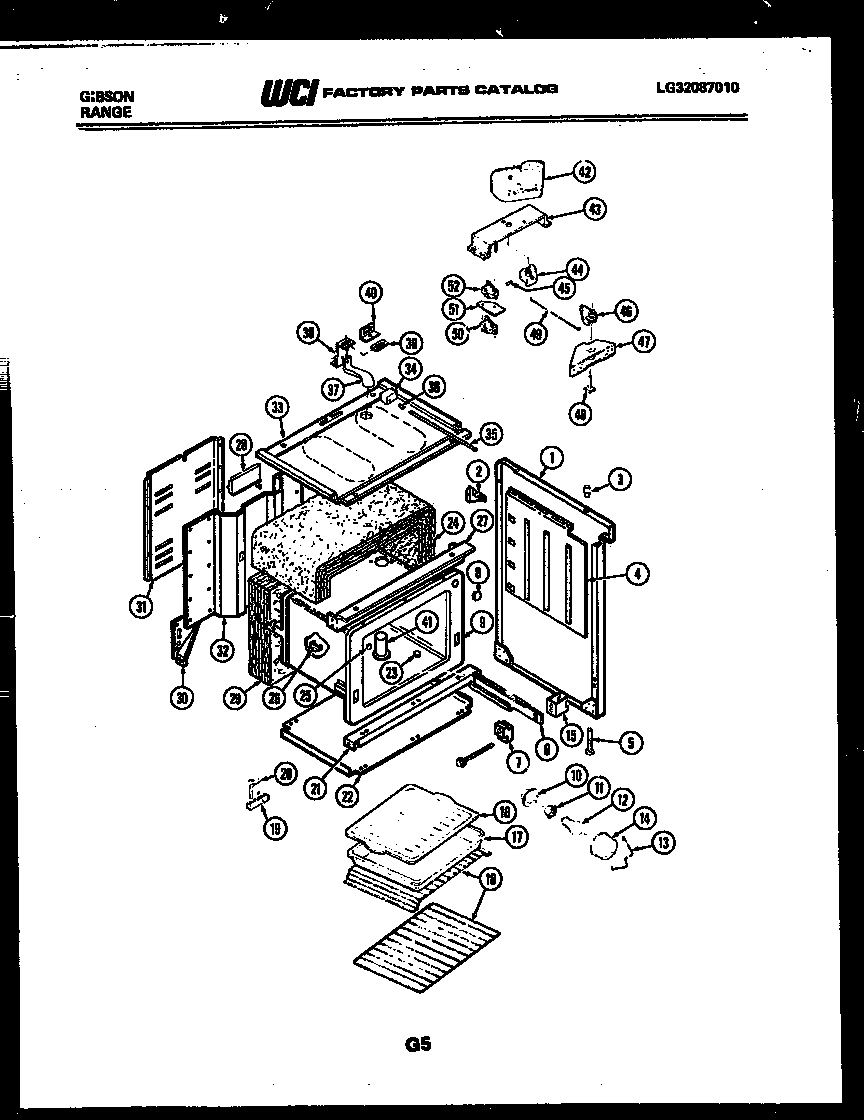

CEC4S7WTAA 03 – BODY PARTS

CEC4S7WTAA 03 – BODY PARTS

Written by

in

CEC4S7WTAA 03 – BODY PARTS

Products

PositionProduct
1WCI K5024601
1WCI K5024602
2GUSSET, BACKGRD (2)
3BUMPER
4RETAINER-INSUL (2)
5LEG
6RAIL, DWR, LH
6RAIL, DWR., RH
7GUIDE
9WCI K1325538
10CUP, OVEN LT
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINING WIRE
145304524341 Frigidaire Lens
15SPACER, RAIL
16GRILLE, BROILER
175304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18WCI K5133501
18RACK (2)
195304409888 Frigidaire Oven Terminal Block with Hardware
20STRAP-GROUND
21CHANNEL, OV. SUPT.
22WCI K5276502
23PLUG-BUTTON 3/4“
24WCI K1311331
25WCI KGM142017
26BRACKET THERM. BULB
27CHANNEL-OVEN SUPT
28WCI K5134501
29INSULATION-OVEN BACK
30GUSSET, RH
30GUSSET REAR, LH
31WCI K1315110
32BACK
33AWASHER, PADDED
33WCI K5025704
34SWITCH-DOOR
35WCI K1322683
36WCI K1322682
37WCI K5130601
38WCI K5130701
39WCI K5130801
40WCI K1311371
41WCI K5055201
42LATCH-MOTOR
43WCI K5151613
44WCI K5151605
45WCI K5151606
46WCI K5260202
47HOUSING, DOOR LATCH
48AXLE
49WCI K5271201
50SWITCH-LOWER
51INSULATOR
52WCI K1167190
