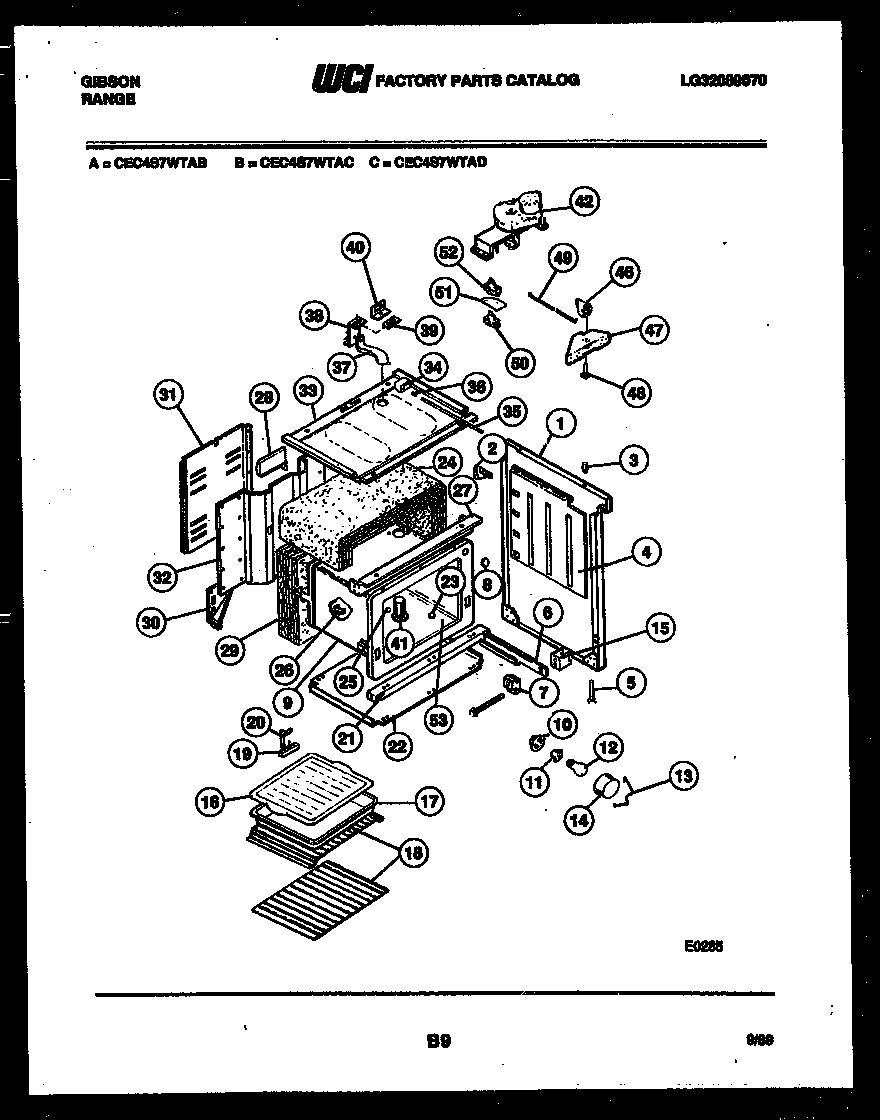

CEC4S7WTAB 03 – BODY PARTS

CEC4S7WTAB 03 – BODY PARTS

Written by

in

CEC4S7WTAB 03 – BODY PARTS

Products

PositionProduct
1WCI K5024607
1AWCI K5024608
1WCI K5024609
1AWCI K5024606
1WCI K5024605
1AWCI K5024602
1END PANEL, RH, ALMOND
1APANEL-END RH-WHEAT
1WCI K5024601
1AEND PANEL, LH, ALMOND
2GUSSET, BACKGRD (2)
3BUMPER
4RETAINER, INSULATION (2)
5LEG
6WCI 08015746
6ARAIL, DRAWER LH
7GUIDE
9WCI K1325538
10CUP, OVEN LT
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINING WIRE
145304524341 Frigidaire Lens
15SPACER, RAIL
16GRILLE, BROILER
175304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18316067902 Frigidaire Oven Rack
18ARACK-OFFSET
195304409888 Frigidaire Oven Terminal Block with Hardware
20STRAP-GROUND
21CHANNEL, OV. SUPT.
22WCI K5276502
23WCI 3051784
24WCI K1311331
25PLUG BUTTON – THERMO BULB HOLE
26BRACKET THERM. BULB
27CHANNEL-OVEN SUPT
28WCI K5134501
29INSULATION-OVEN BACK
30GUSSET, RH
30AGUSSET REAR, LH
31WCI K1315110
32BACK
33WCI K005025704
33AWASHER, PADDED
34SWITCH-DOOR
35WCI K1322683
36WCI 08007444
37WCI 3051655
38BRACKET, VENT TUBE
39GASKET, OVEN VENT TUBE
40WCI K1311371
41WCI K5055201
42LATCH-MOTOR
46LATCH-DOOR
47HOUSING-DOOR LATCH
48AXLE
49WCI K5271201
50SWITCH-LOWER
51INSULATOR
52WCI K1167190
