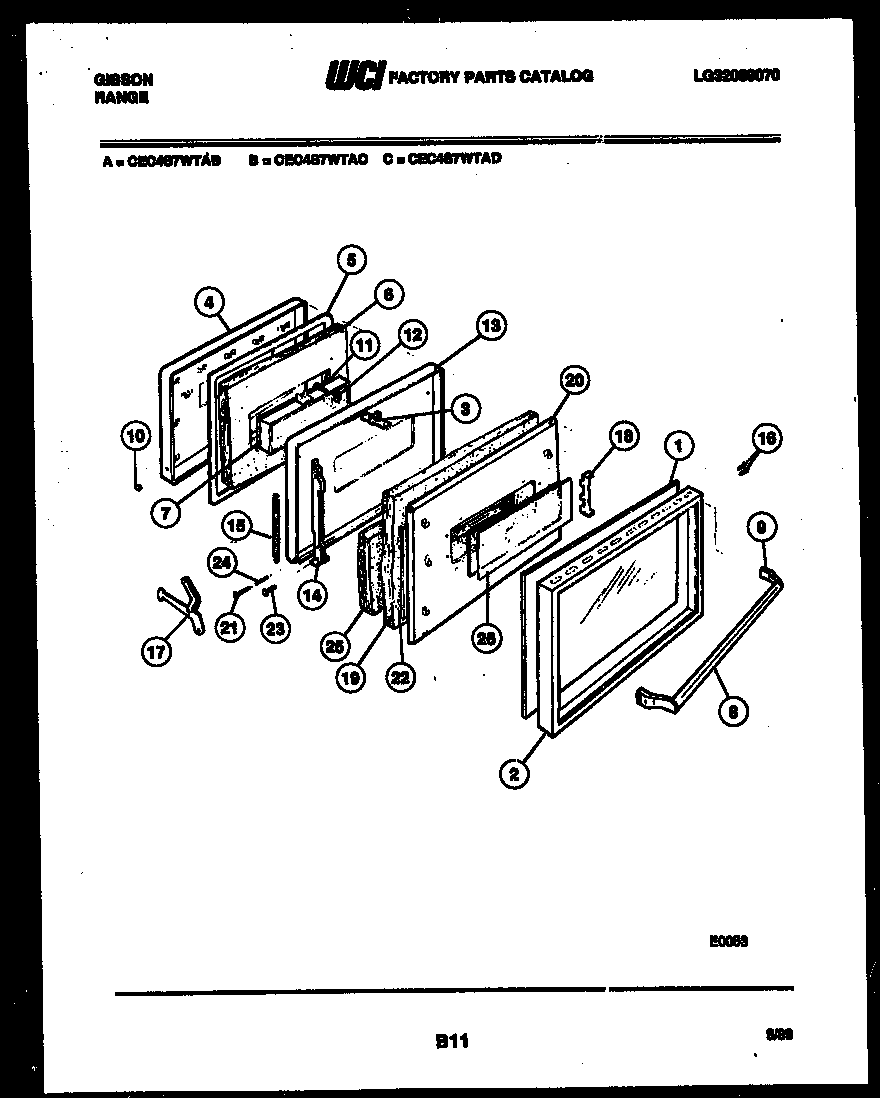

CEC4S7WTAB 04 – DOOR PARTS

Products

Position	Product
*19071	WCI 3051706
1	GLASS – OUTER
2	FRAME – DOOR
3	WCI K1167830
4	BAFFLE
5	SEAL
6	WCI 3008673
7	WCI K1322068
8	WCI K5026807
9	STANCHION-HANDLE (2)
10	BUTTON PLUG
11	WCI K1164550
12	WASHER, PADDED
13	WCI K1324720
14	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
15	WCI K1302501
16	SCREW
17	ARM ASSY.
18	WCI 3051714
19	WCI K1322652
20	WCI K5276901
21	WCI K1100733
22	WCI K1318825
23	AXLE
24	WCI K1309794
25	WCI 3008677
26	BOTTOM REMOTE LITE SWITCH
