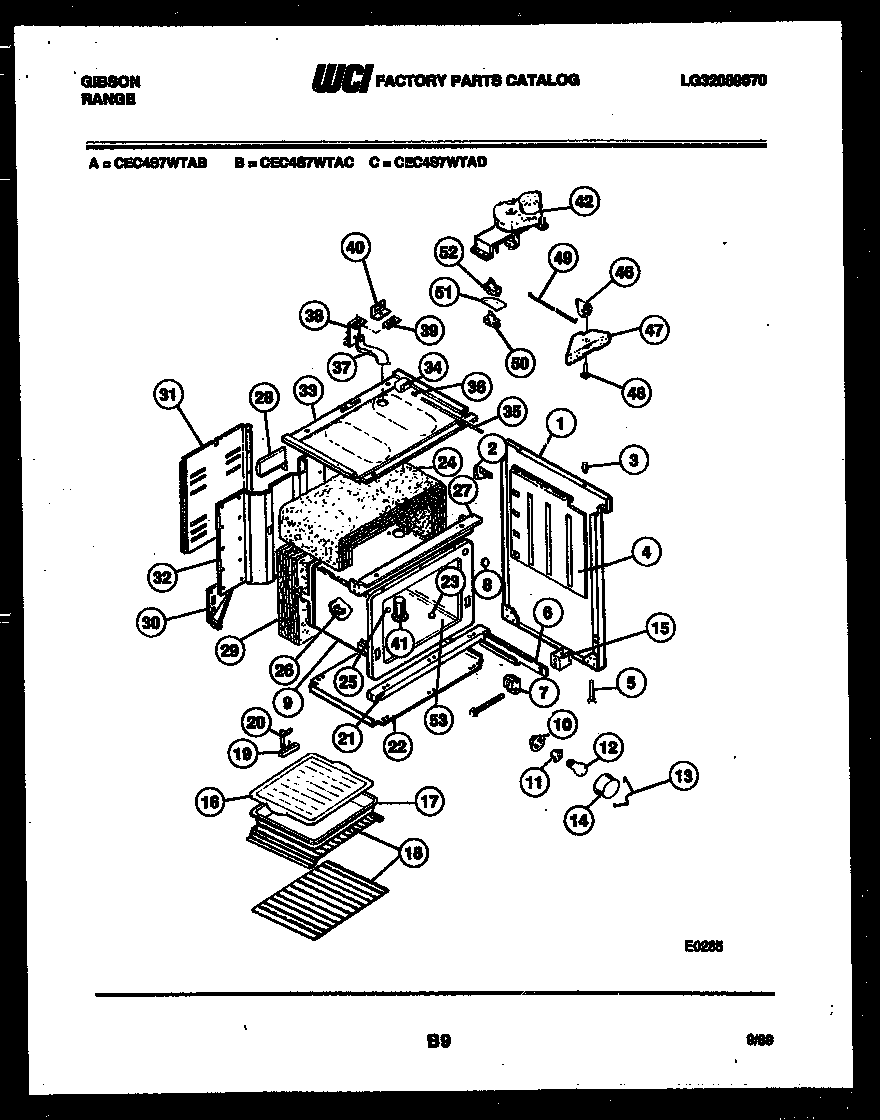

CEC4S7WTAD 03 – BODY PARTS

Products

PositionProduct
*19069ANTI-TIP KIT, (NON-ILLUSTRATED)
1WCI K5024605
1AWCI K5024606
1WCI K5024607
1WCI K5024609
1AWCI K5024602
1WCI K5024601
1APANEL-END RH-WHEAT
1END PANEL, RH, ALMOND
1AWCI K5024608
1AEND PANEL, LH, ALMOND
2GUSSET, BACKGRD (2)
3BUMPER
4RETAINER, INSULATION (2)
5LEG, LEVELLER (4)
6ARAIL, DRAWER LH
6WCI 08015746
7GUIDE
9BODY-OVEN
10CUP, OVEN LT
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINING WIRE
145304524341 Frigidaire Lens
15SPACER, RAIL
16WCI 3205234
17WCI 3205232
18ARACK-OFFSET
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20STRAP-GROUND
21CHANNEL – OVEN SUPPORT LOWER
22WCI 3203574
23WCI 3051784
24WCI K1311331
25PLUG BUTTON – THERMO BULB HOLE
26BRACKET THERM. BULB
27CHANNEL, OVEN SUPPORT UPPER
28WCI K5134501
29INSULATION-OVEN BACK
30WCI 3017481
30AWCI 3017482
31COVER – WIRE
32PANEL-BACK
33AWASHER, PADDED
33WCI K005025704
34SWITCH-DOOR
35WCI K1322683
36WCI 08007444
37WCI 3051655
38BRACKET, VENT TUBE
39GASKET, OVEN VENT TUBE
40WCI K1311371
41WCI K5055201
42LATCH-MOTOR
46LATCH-DOOR
47HOUSING-DOOR LATCH
48AXLE
49WCI K5271201
50SWITCH-LOWER
51INSULATOR
52WCI K1167190
53WCI 3202082
