CEC4S8DXC 03 – BODY

CEC4S8DXC 03 – BODY

Written by

in

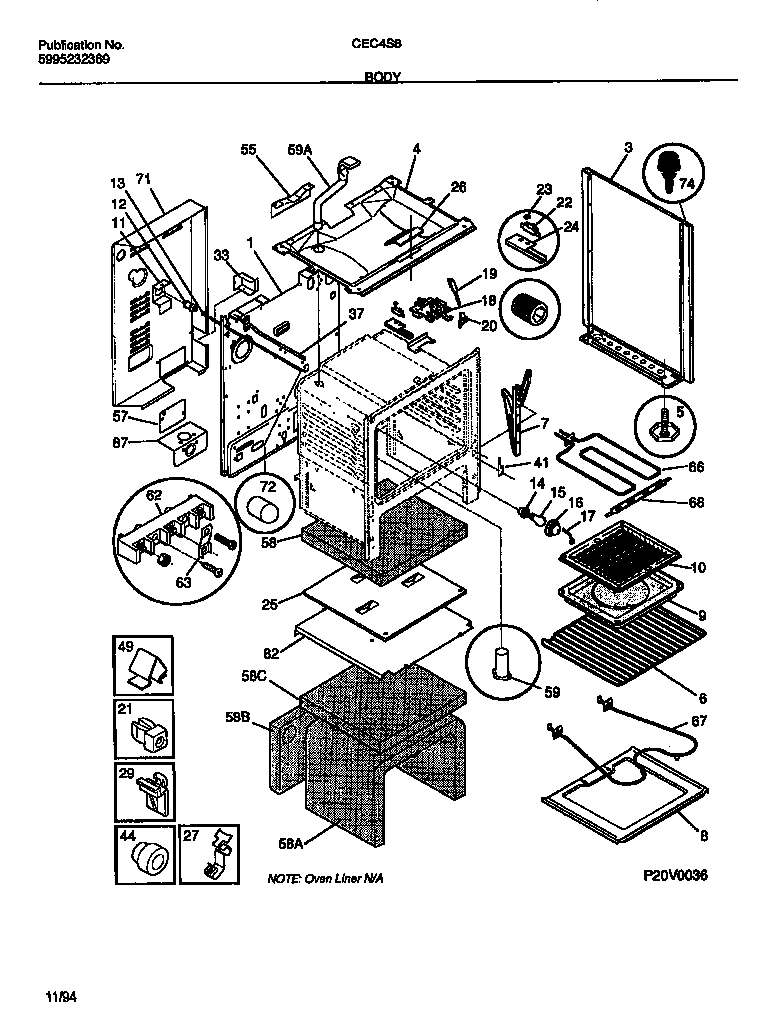

CEC4S8DXC 03 – BODY

Products

PositionProduct
*00881SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*00893TOUCH, UP PAINT, ALMOND (NI)
*00882FASTENER-EDGE MTG (NOT ILLUSTRATED)
*00895WCI 08067961
*008943203550 Frigidaire Oven Plug
*00883WCI 5303271873
1WCI 3203082
3WCI 5303269545
3WCI 5303269543
4WCI 5303271899
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5ANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
11WCI 5303131289
12SWITCH-OVEN LITE DOOR
13WCI 5303269501
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 5303015361
18SHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 08013188
20WCI 3203218
21SPACER-BODYSIDE, (8)
22STUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
26WCI 08067757
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
55COVER-FLUE
57COVER-ACCESS
58CINSULATION, OVEN TOP
58AINSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
59AWCI 5303271872
59WCI 5303271905
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
