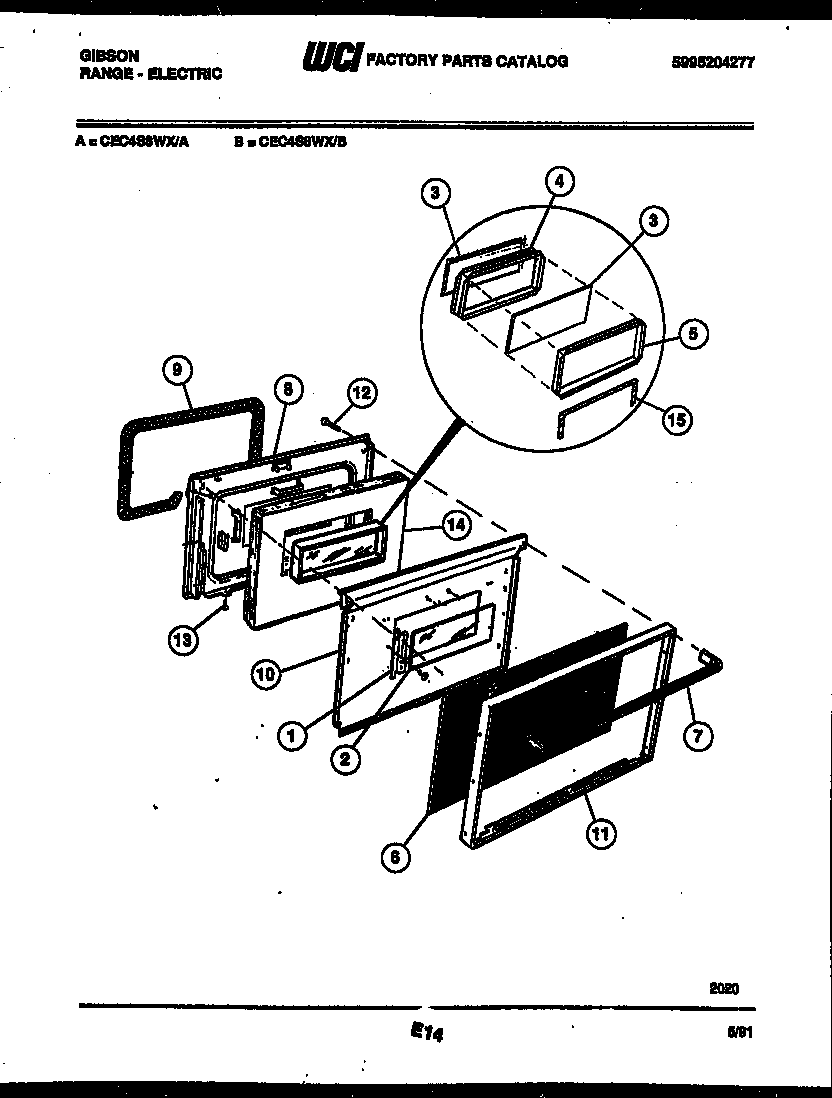

CEC4S8WXA 05 – DOOR PARTS

CEC4S8WXA 05 – DOOR PARTS

Written by

in

CEC4S8WXA 05 – DOOR PARTS

Products

PositionProduct
*430885303300265 Frigidaire Oven Screw
*43088FSTNR-NYLON SPACER (NON-ILLUSTRATED)
*43089REFLECTOR, ALUMINUM FOIL
*430885303208655 Frigidaire Reflector Assembly
*43088WCI 3131236
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4WCI 5303209517
5WCI 5303209511
6GLASS FRNT
7WCI 5303212669
8WCI 5303209515
95303131601 Frigidaire Oven Seal
10SHIELD-INSULATION
11WCI 5303209518
12SCREW – HANDLE (2)
13SCREW DOOR MTG
14INSULATION-OVEN DOOR
15SEAL-ROPE, 0.25 DIA
