CEC4S8WXB 06 – BODY PARTS

CEC4S8WXB 06 – BODY PARTS

Written by

in

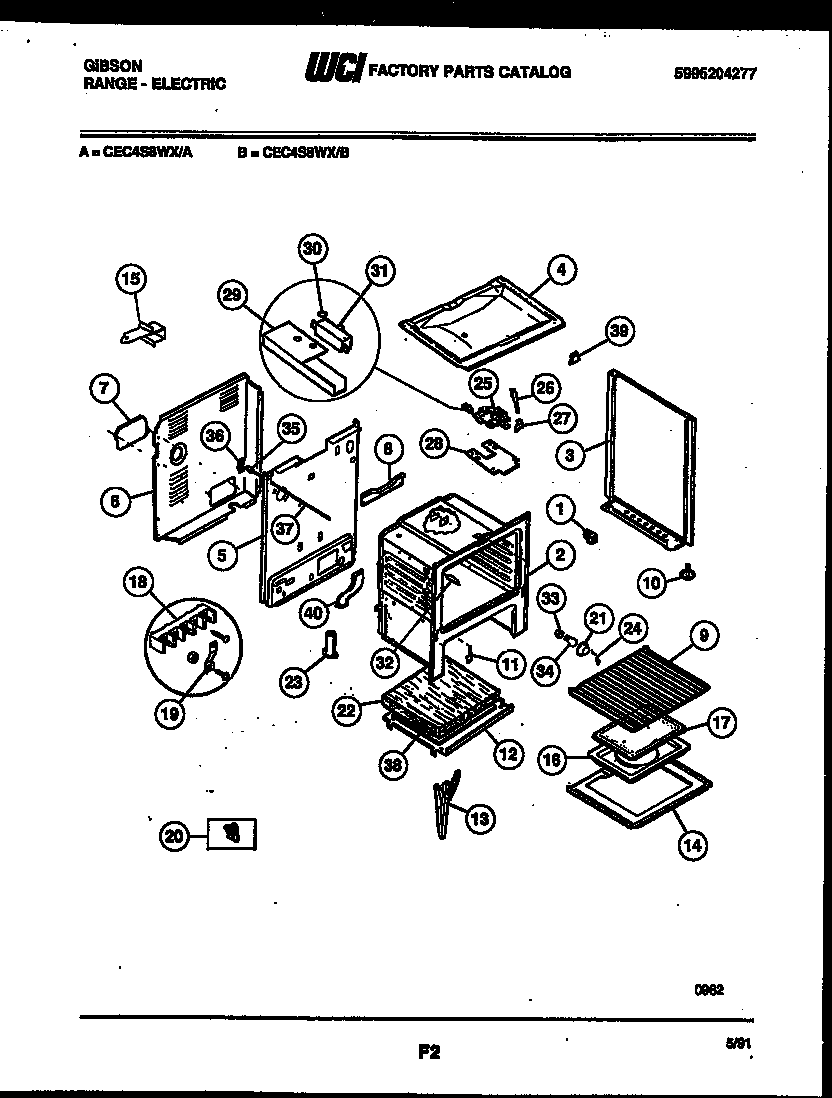

CEC4S8WXB 06 – BODY PARTS

Products

PositionProduct
1SPACER-BODYSIDE, (8)
3PNL-BODYSIDE LH-WHITE
3PNL-BODYSIDE LH-ALMOND
3APNL-BODYSIDE RH-WHITE
3APNL-BODYSIDE RH-ALMOND
4WCI 5303271899
5WCI 3203082
6SHIELD-REAR WALL, LOWER
7COVER-ACCESS
8COVER-FLUE
9316067902 Frigidaire Oven Rack
10SCREW-LEVELING
11WCI 3131570
12SHIELD, OVEN BOTTOM
13WCI 316007002
14PANEL-OVEN BOTTOM
15WCI 3203582
16PAN-BROILER
17WCI 5301313356
185304409888 Frigidaire Oven Terminal Block with Hardware
19PLATE-GROUND STRAP
203051162 Frigidaire Oven Range Front Broiler Drawer Glide
215304524341 Frigidaire Lens
22316403803 Frigidaire Insulation
23WCI 5303271905
24E316205500 Frigidaire Oven Nut
24AINSULATION, OVEN WRAPPER
24C3131903 Frigidaire Door/Drawer Bumper
24BINSULATION OVEN BACK (NON-ILLUSTRATED)
24RETAINER-GLASS
24DSCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
25WCI 5303015361
26WCI 5303131357
27AWCI 08013188
27WCI 3203218
28SHIELD-LATCH
29SHIELD-LATCH (NON-ILLUSTRATED)
30FSTNR-PUSH ON
31SWITCH-LATCH
325304497424 Frigidaire Oven Temperature Sensor Probe Kit
33316116400 Frigidaire Oven Light Socket
34316538904 Frigidaire Oven Lamp Light
35SWITCH-OVEN LITE DOOR
36WCI 5303131289
37WCI 5303209316
38AINSULATION, OVEN TOP
38WCI 3200848
393205821 Frigidaire Clip
40WCI 5303271872
