CEC4S8WXC 05 – TOP/DRAWER

CEC4S8WXC 05 – TOP/DRAWER

Written by

in

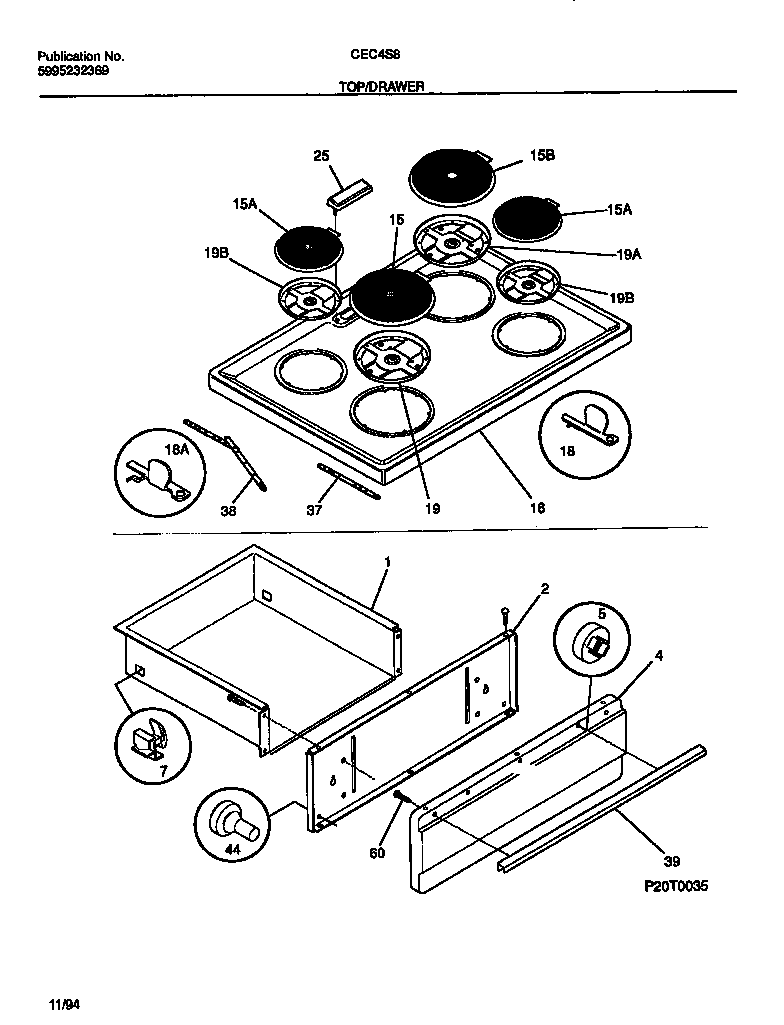

CEC4S8WXC 05 – TOP/DRAWER

Products

PositionProduct
*00886NUT 6-M ELEMENT MTG (NON-ILLUSTRATED)
*00885WCI 3051195
*00887WCI 5303281584
*00884WCI 5303271916
1DRAWER-UTILITY
2SHIELD-PNL
4PNL-DRAWER (WHTE)
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15BSURFACE UNIT, AUTO.
15WCI 5303271910
15AWCI 5303271867
16GUSSET-MTG (LH) (NON-ILLUSTRATED)
16GUSSET-MTG (RH) (NON-ILLUSTRATED)
16MAIN TOP, WHITE
16CHANNEL, TOP STIFFNER (NON-ILLUSTRATED)
18BRACKET-HINGE,MAIN TOP RH
18ABRACKET-HINGE,MAIN TOP LH
19BPAN, ELEMENT SHIELD, SM 6/INCH
19AWCI 5303271912
19WCI 5303271911
25WCI 08014262
25GASKET, OVEN VENT TUBE
37STRAP, ELEMENT MTG
38WCI 5303271915
39HANDLE
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
