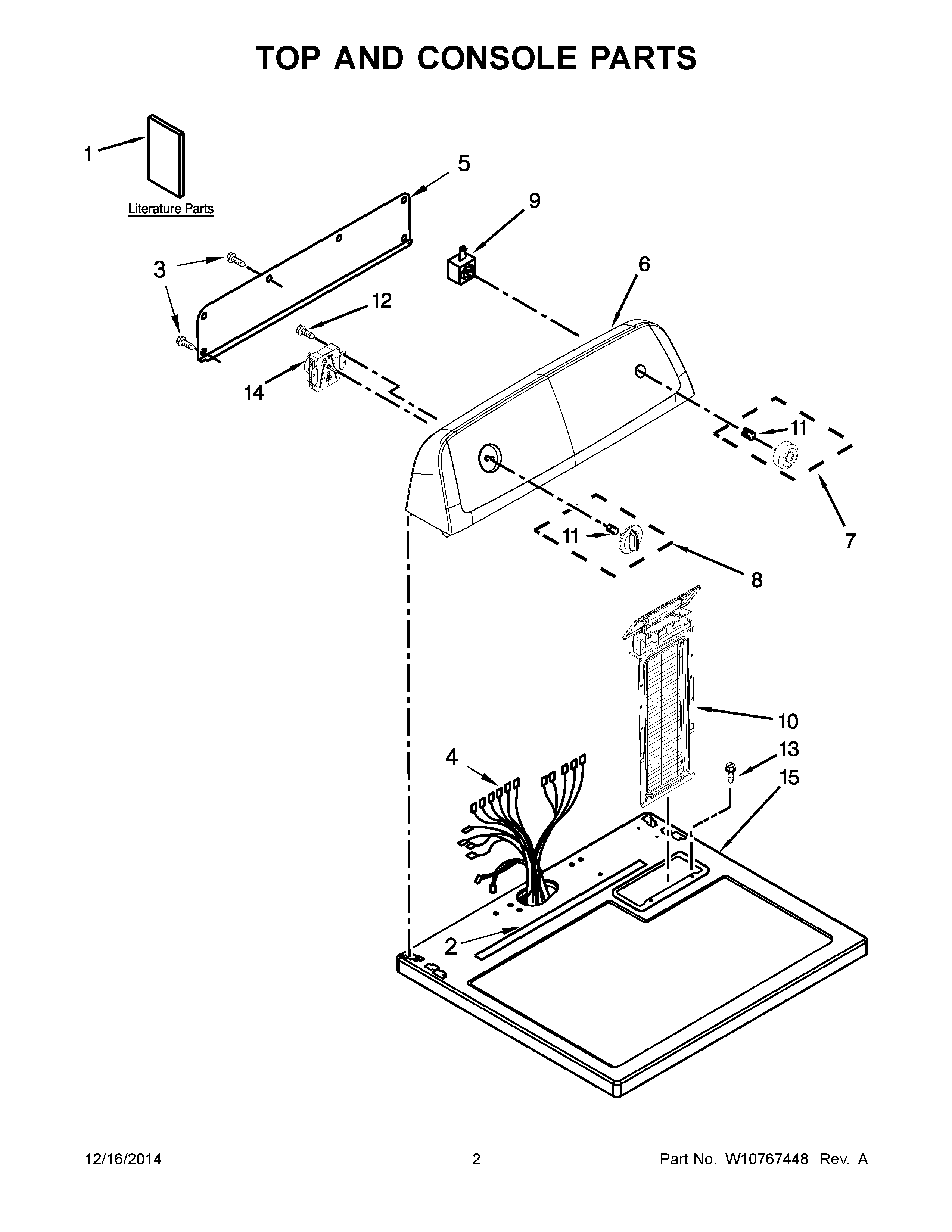

CED123SEW0 02 – TOP AND CONSOLE PARTS

CED123SEW0 02 – TOP AND CONSOLE PARTS

Written by

in

CED123SEW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1AUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W10316616 Whirlpool Seal
3WP693995 Whirlpool Screw
4WPW10450286 Whirlpool Wire Harness
5WPW10416486 Whirlpool Rear Panel
6ASSEMBLY, CONSOLE (WHITE)
7WPW10453948 Whirlpool Knob
8WPW10711289 Whirlpool Washer Control Knob Dryer
9WPW10420741 Whirlpool Dryer Start Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14TIMER
15WP8563663 Whirlpool Top Assembly
