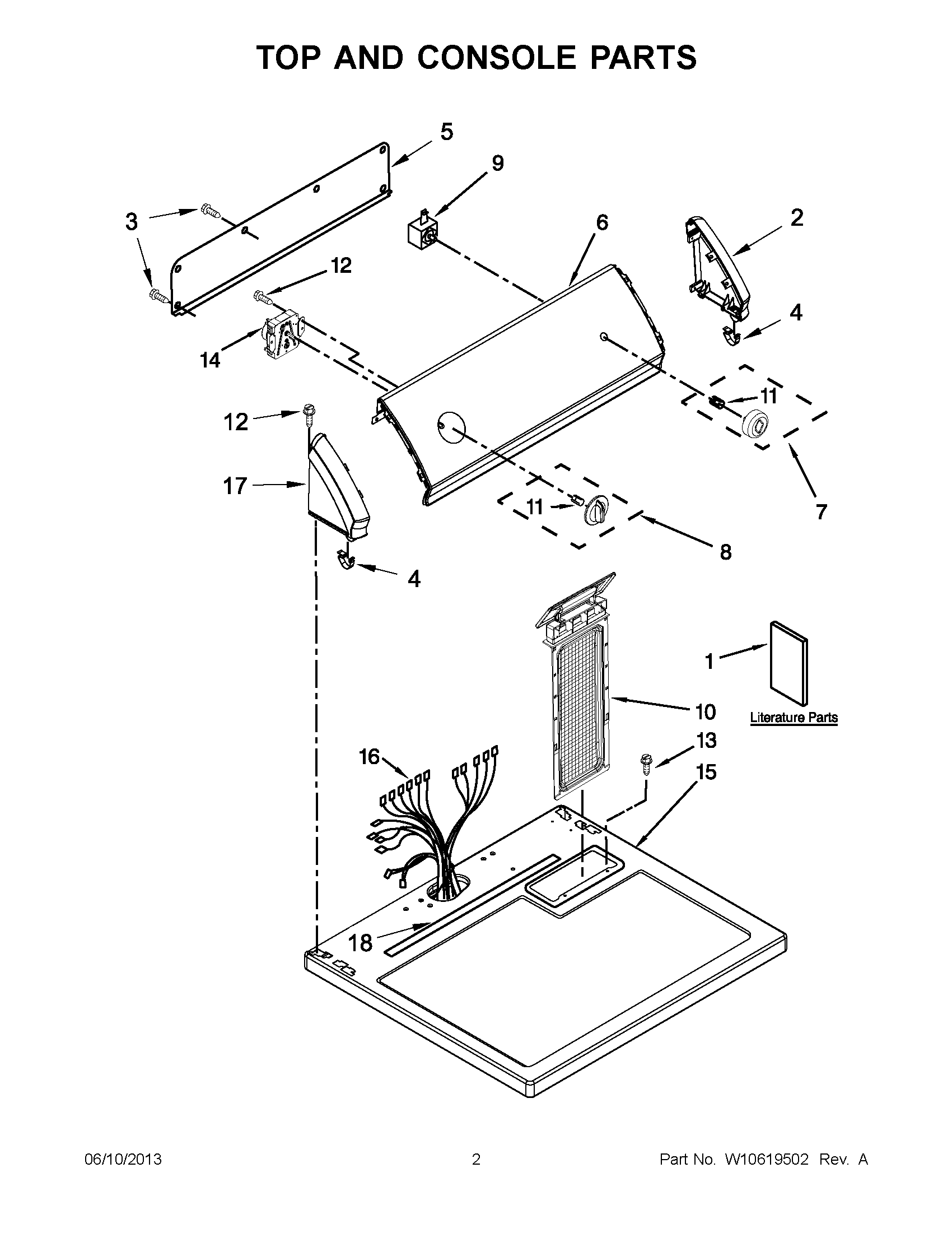

CED126SBW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
2WP8559501 Whirlpool Endcap
3WP693995 Whirlpool Screw
4WP8312709 Whirlpool Endcap Clip
5W10103406 Whirlpool Rear Panel
6PANEL, CONTROL
7W10317459 Whirlpool Knob
8W10317457 Whirlpool Knob
9WP3977456 Whirlpool Start Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP8299779 Whirlpool Timer
15WP8563663 Whirlpool Top Assembly
16HARNESS, WIRING
17WP8559502 Whirlpool Endcap Assembly
18W10316616 Whirlpool Seal
