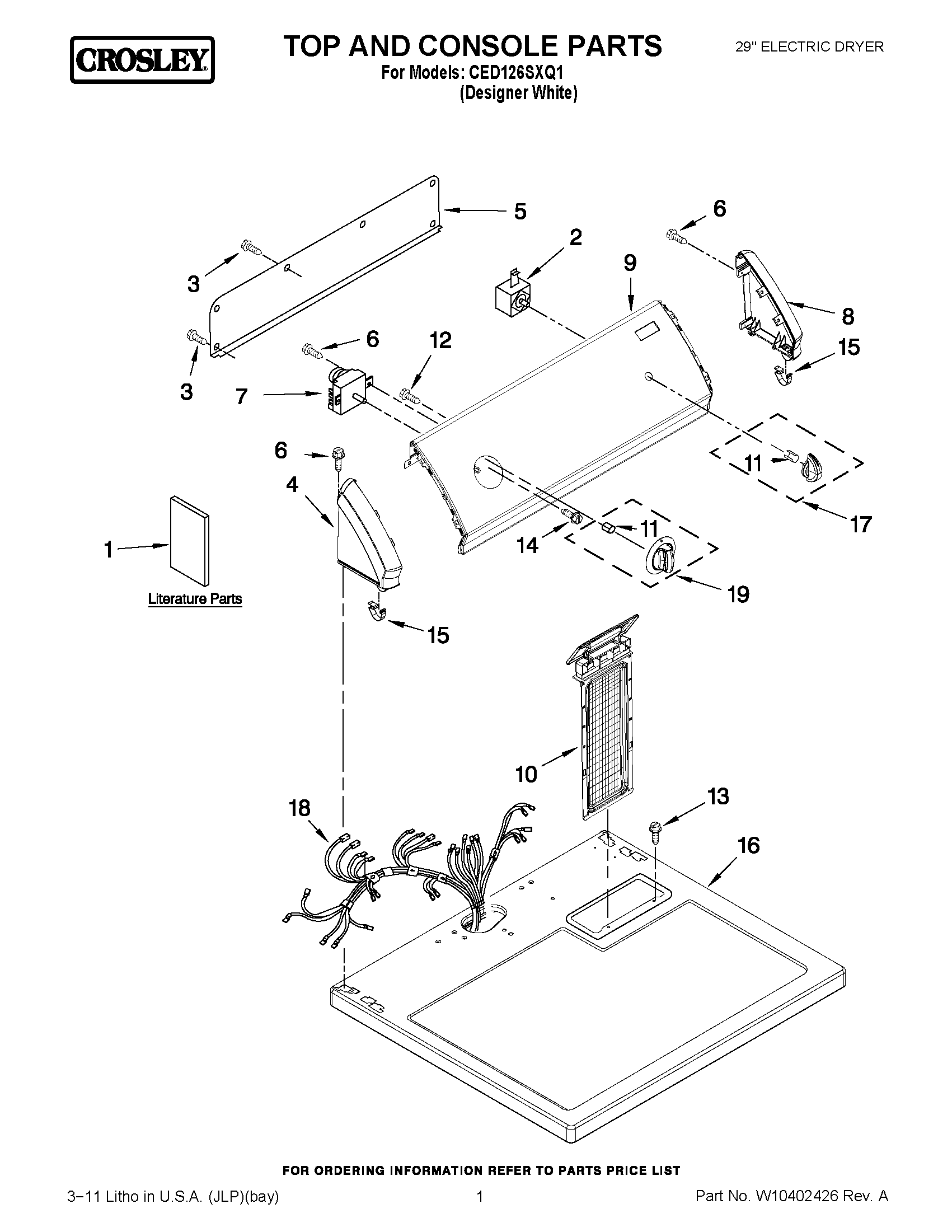

CED126SXQ1 01 – TOP AND CONSOLE PARTS

CED126SXQ1 01 – TOP AND CONSOLE PARTS

Written by

in

CED126SXQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2WP3977456 Whirlpool Start Switch
3WP693995 Whirlpool Screw
4WP8559502 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
6WP90767 Whirlpool Screw
7W10894766 Whirlpool Dryer Timer
8WP8559501 Whirlpool Endcap
9PANEL CONSOLE & BRACKET ASSEMBLY
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12W10915367 Whirlpool Screw Assembly
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8312709 Whirlpool Endcap Clip
16WP8563663 Whirlpool Top Assembly
17W10317459 Whirlpool Knob
18W10366762 Whirlpool Wire Harness
19W10317457 Whirlpool Knob
