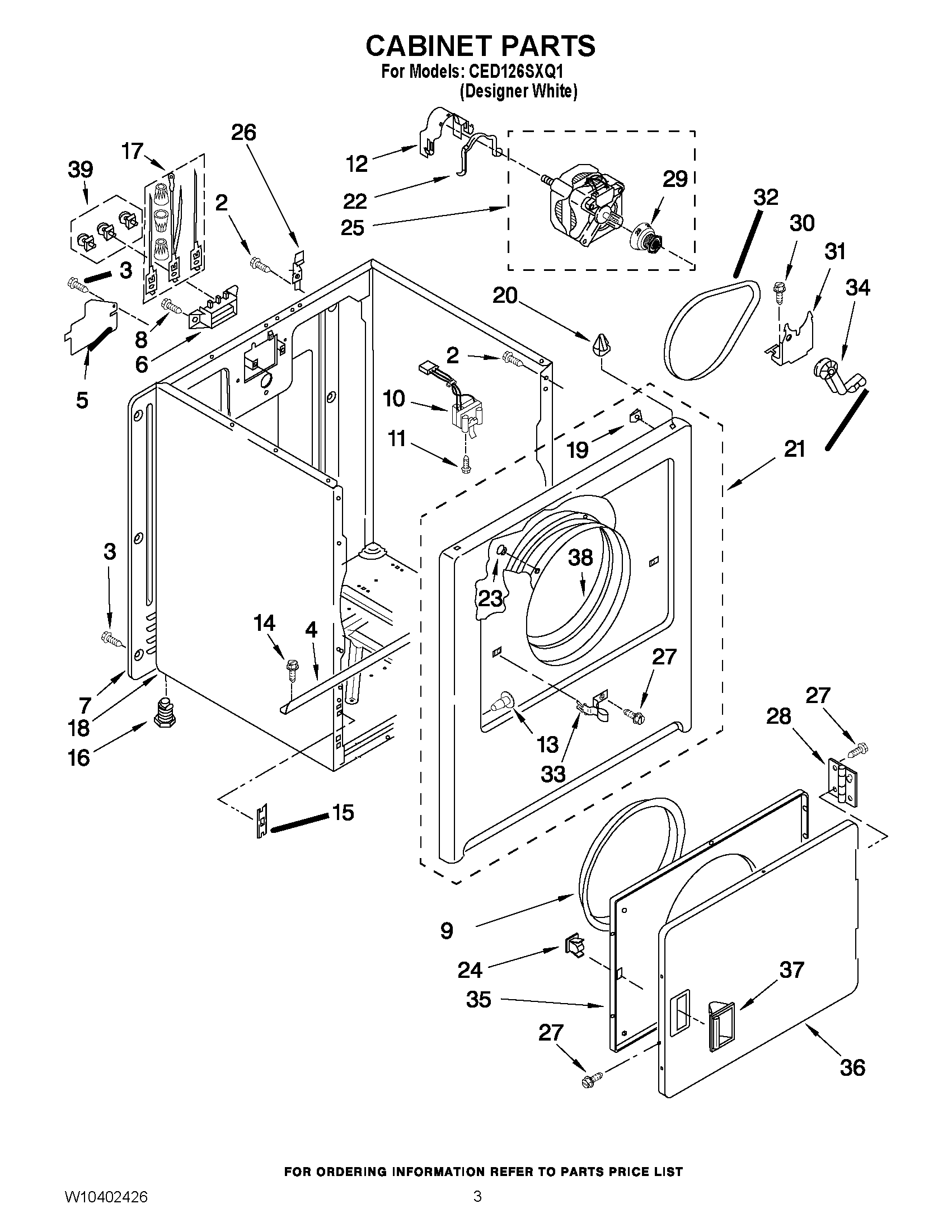

CED126SXQ1 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	WP3397659 Whirlpool Terminal Block
7	280040 Whirlpool Rear Panel
8	WP308685 Whirlpool Microwave Screw
9	SEAL-DOOR DRYER
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404162 Whirlpool Clamp
13	WP3404413 Whirlpool Plug
14	WP3390631 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Front Assembly
22	CLAMP
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	279827 Whirlpool Dryer Drive Motor
26	WP8066217 Whirlpool Hinge
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP8066184 Whirlpool Dryer Motor Pulley
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	Door, Rear
36	WP3403361 Whirlpool Door
37	WP3405184 Whirlpool White Door Handle
38	279264 Whirlpool Bearing and Seal Kit
39	279393 Whirlpool Terminal Block Screw and Nut Kit
