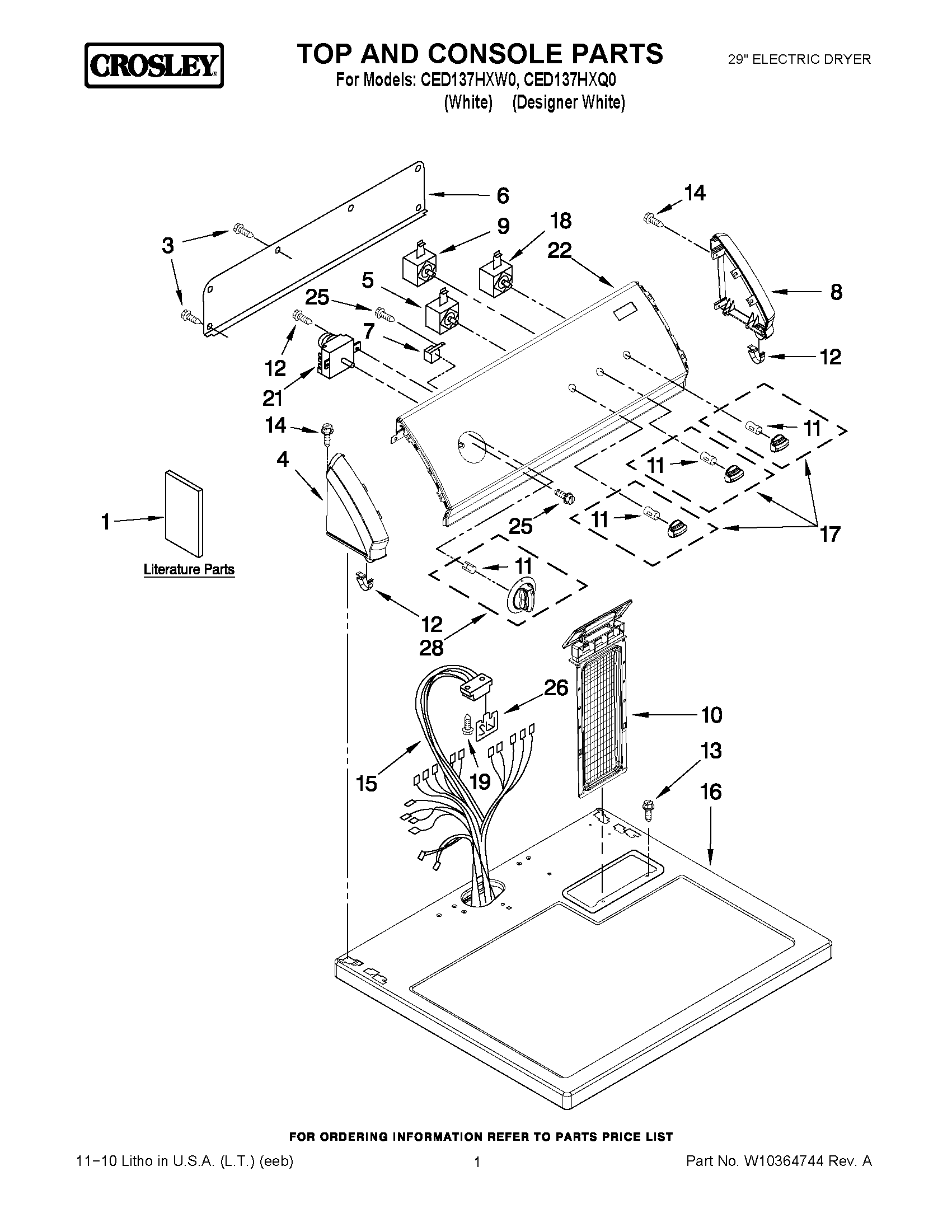

CED137HXW0 01 – TOP AND CONSOLE PARTS

CED137HXW0 01 – TOP AND CONSOLE PARTS

Written by

in

CED137HXW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1Wiring Diagram
3WP693995 Whirlpool Screw
4WP8559502 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6W10103406 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WP8559501 Whirlpool Endcap
9WP8578354 Whirlpool Temperature Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14W10915367 Whirlpool Screw Assembly
15W10071280 Whirlpool Wiring Harness
16WP8563663 Whirlpool Top Assembly
17W10317458 Whirlpool Knob
18WPW10117655 Whirlpool Dryer Start Switch
19SCREW
21TIMER
22PANEL CONSOLE & BRACKET ASSEMBLY
25WP90767 Whirlpool Screw
26WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
28W10317457 Whirlpool Knob
