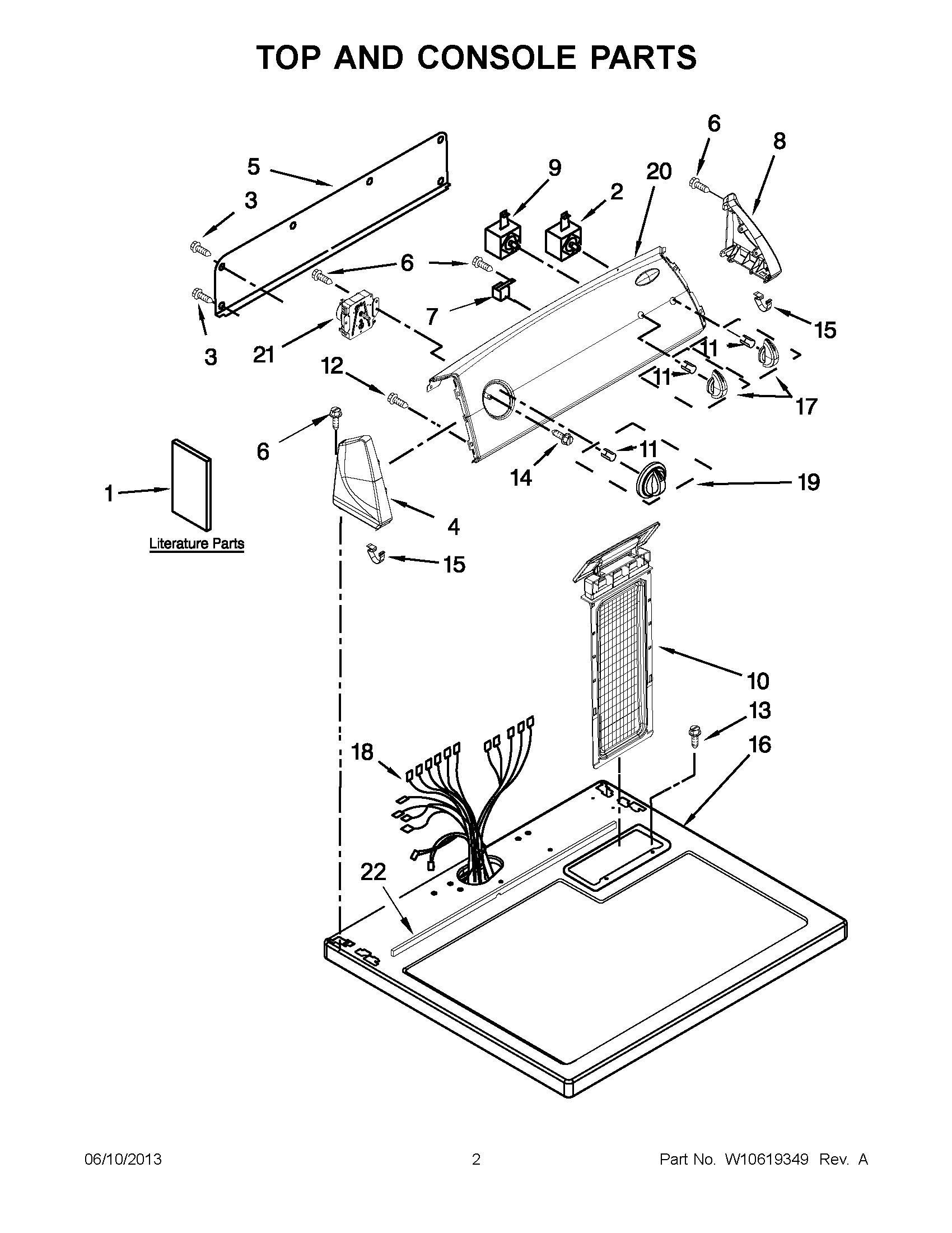

CED137SBW0 01 – TOP AND CONSOLE PARTS

CED137SBW0 01 – TOP AND CONSOLE PARTS

Written by

in

CED137SBW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1Wiring Diagram
1INSTALLATION INSTRUCTIONS
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WP8559502 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WP8559501 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP3400818 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8312709 Whirlpool Endcap Clip
16WP8563663 Whirlpool Top Assembly
17W10317458 Whirlpool Knob
18W10740200 Whirlpool Wire Harness
19W10317457 Whirlpool Knob
20W10536505 Whirlpool Control Panel
21WPW10185982 Whirlpool Timer
22W10316616 Whirlpool Seal
