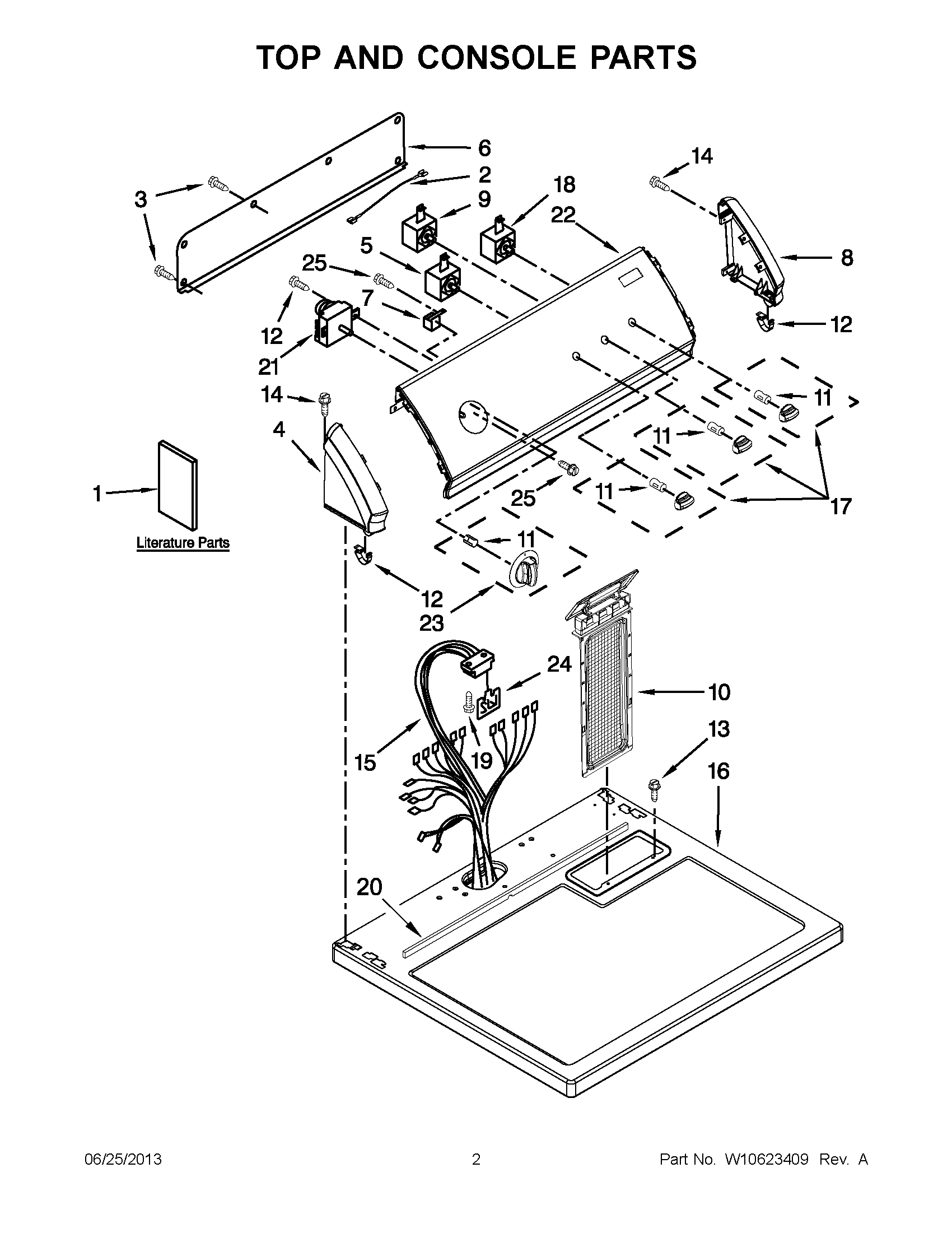

CED147SBW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1	Wiring Diagram
2	W10113080 Whirlpool Wire Harness
3	WP693995 Whirlpool Screw
4	WP8559502 Whirlpool Endcap Assembly
5	WP3405156 Whirlpool Switch
6	W10103406 Whirlpool Rear Panel
7	WP694419 Whirlpool Buzzer Adjuster
8	WP8559501 Whirlpool Endcap
9	WP8578354 Whirlpool Temperature Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP8312709 Whirlpool Endcap Clip
13	W11693756 Whirlpool Screw Assembly
14	WP3400818 Whirlpool Screw
15	W10071280 Whirlpool Wiring Harness
16	WP8563663 Whirlpool Top Assembly
17	W10317458 Whirlpool Knob
18	WPW10117655 Whirlpool Dryer Start Switch
19	SCREW
20	W10316616 Whirlpool Seal
21	TIMER
22	ASSEMBLY, CONTROL PANEL & BRACKET
23	W10317457 Whirlpool Knob
24	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
25	WP90767 Whirlpool Screw
