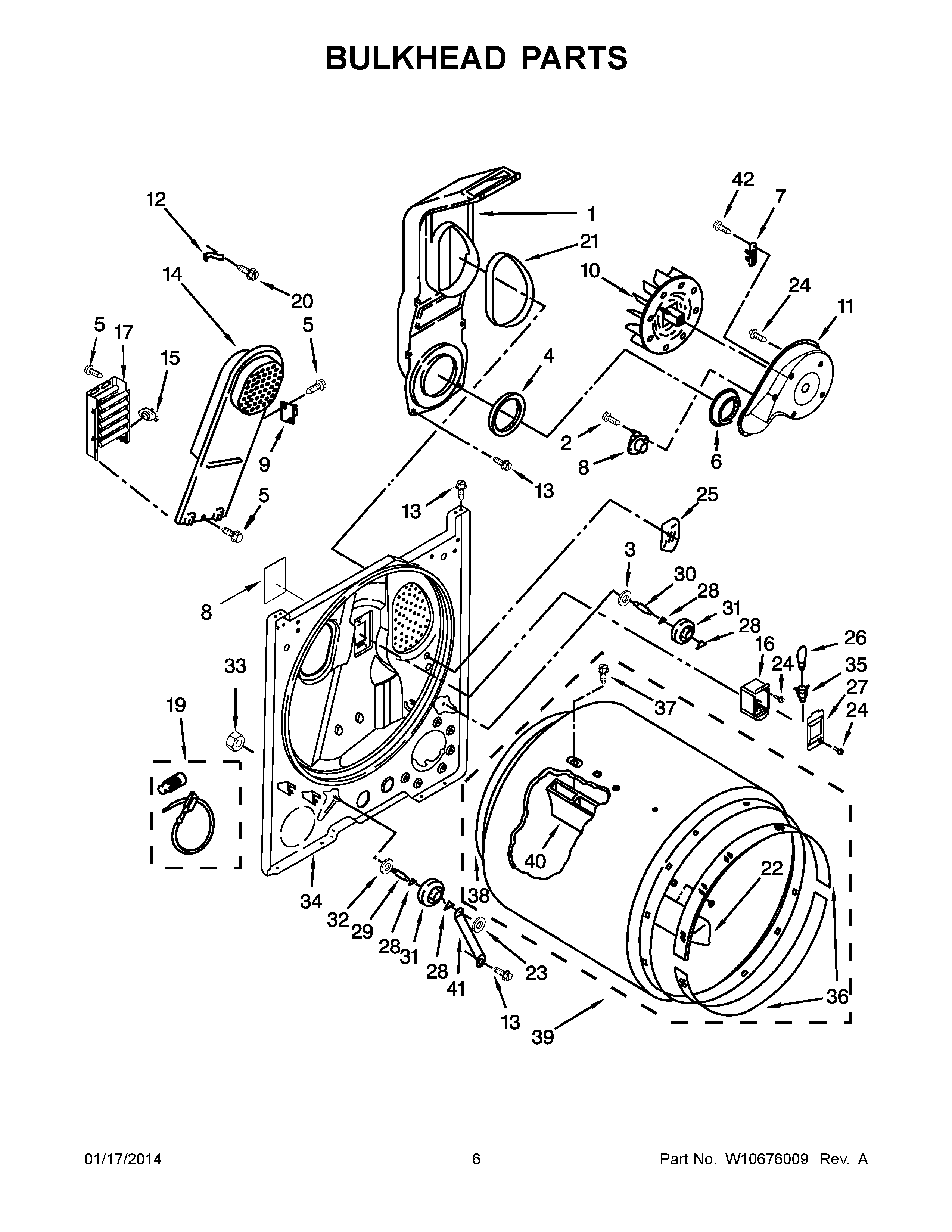

CED147SDW0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP8318268 Whirlpool Thermostat
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	3977373 Whirlpool Bracket
17	279838 Whirlpool Dryer Heating Element 5400W
18	W11409002 Whirlpool Pad
20	WP489463 Whirlpool Refrigerator Screw
21	SEAL
22	WP3403636 Whirlpool Drum Baffle
23	WP90296 Whirlpool Clip
24	WP488729 Whirlpool Refrigerator Door Screw
25	SENSOR KIT
26	WP22002263 Whirlpool Dryer 10W Light Bulb
27	W11226088 Whirlpool Lens Assembly
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	W11229607 Whirlpool Nut
34	W10828905 Whirlpool Bulkhead OS1
35	W11222979 Whirlpool Socket
36	279441 Whirlpool Front Bearing Ring
37	W10853898 Whirlpool Screw
38	W10612022 Whirlpool Felt Seal
39	W10899578 Whirlpool Dryer Drum Assembly
40	BAFFLE-DRM
41	W11684613 Whirlpool Bracket
42	WP308685 Whirlpool Microwave Screw
