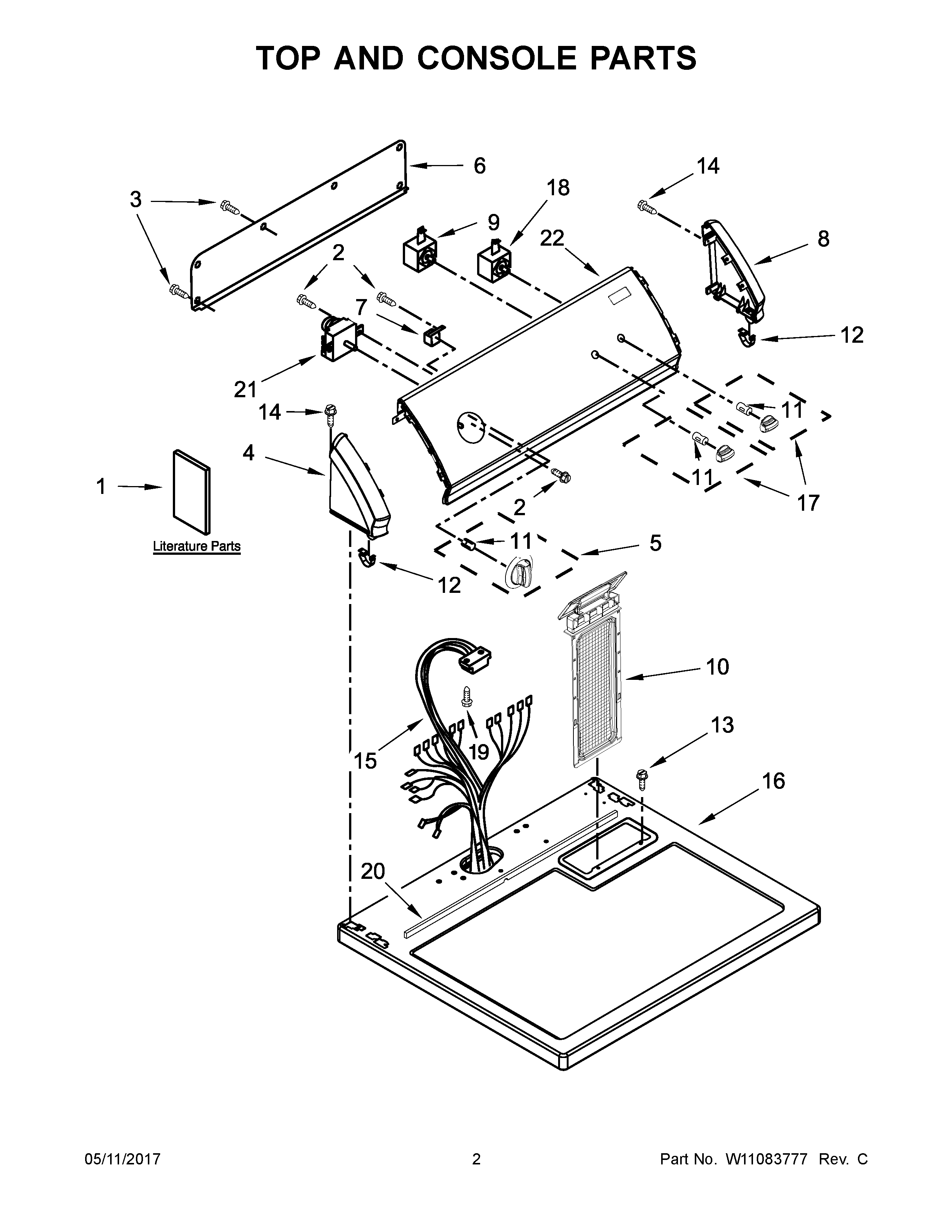

CED7006GW0 02 – TOP AND CONSOLE PARTS

CED7006GW0 02 – TOP AND CONSOLE PARTS

Written by

in

CED7006GW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE & CARE GUIDE
1BWiring Diagram
2WP90767 Whirlpool Screw
3WP693995 Whirlpool Screw
4WP8559502 Whirlpool Endcap Assembly
5W10317457 Whirlpool Knob
6W10103406 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WP8559501 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14WP3400818 Whirlpool Screw
15W10740200 Whirlpool Wire Harness
16WP8563663 Whirlpool Top Assembly
17W10317458 Whirlpool Knob
18WPW10117655 Whirlpool Dryer Start Switch
19SCREW
20W10316616 Whirlpool Seal
21WPW10185982 Whirlpool Timer
22W11089351 Whirlpool Control Panel
