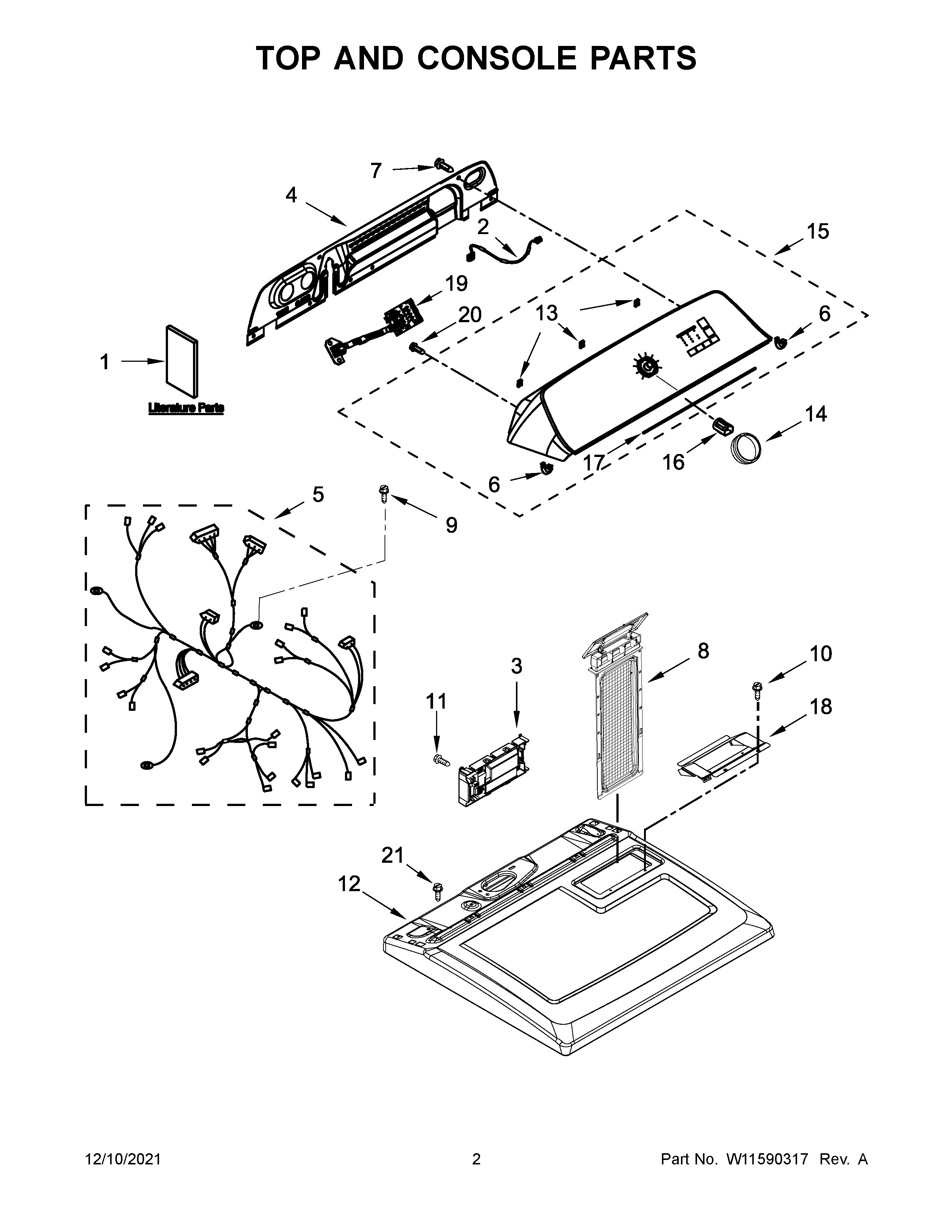

CED7011LW1 02 – TOP AND CONSOLE PARTS

CED7011LW1 02 – TOP AND CONSOLE PARTS

Written by

in

CED7011LW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BQUICK START GUIDE
1ATECH SHEET
1OWNERS MANUAL
2HARNS-WIRE
3APPLIANCE CONTROL UNIT (ACU)
4W10775189 Whirlpool Rear Panel
5W11736786 Whirlpool Wire Harness
6WP8312709 Whirlpool Endcap Clip
7WP693995 Whirlpool Screw
8SCREEN
9W10850756 Whirlpool Screw
10W11693756 Whirlpool Screw Assembly
11WP90767 Whirlpool Screw
12W11222514 Whirlpool Top Assembly
13W11213336 Whirlpool Nut
14W11406489 Whirlpool Knob
15ASSEMBLY, CONSOLE (WHITE)
16WP8536939 Whirlpool Spring Clip
17W11721376 Whirlpool Seal Assembly
18W10662472 Whirlpool Cover Assembly
19W11627521-includeCORE Whirlpool W11627521 Washer Electronic Control Board + Core
20WP9740848 Whirlpool Dishwasher Screw
21SCREW
