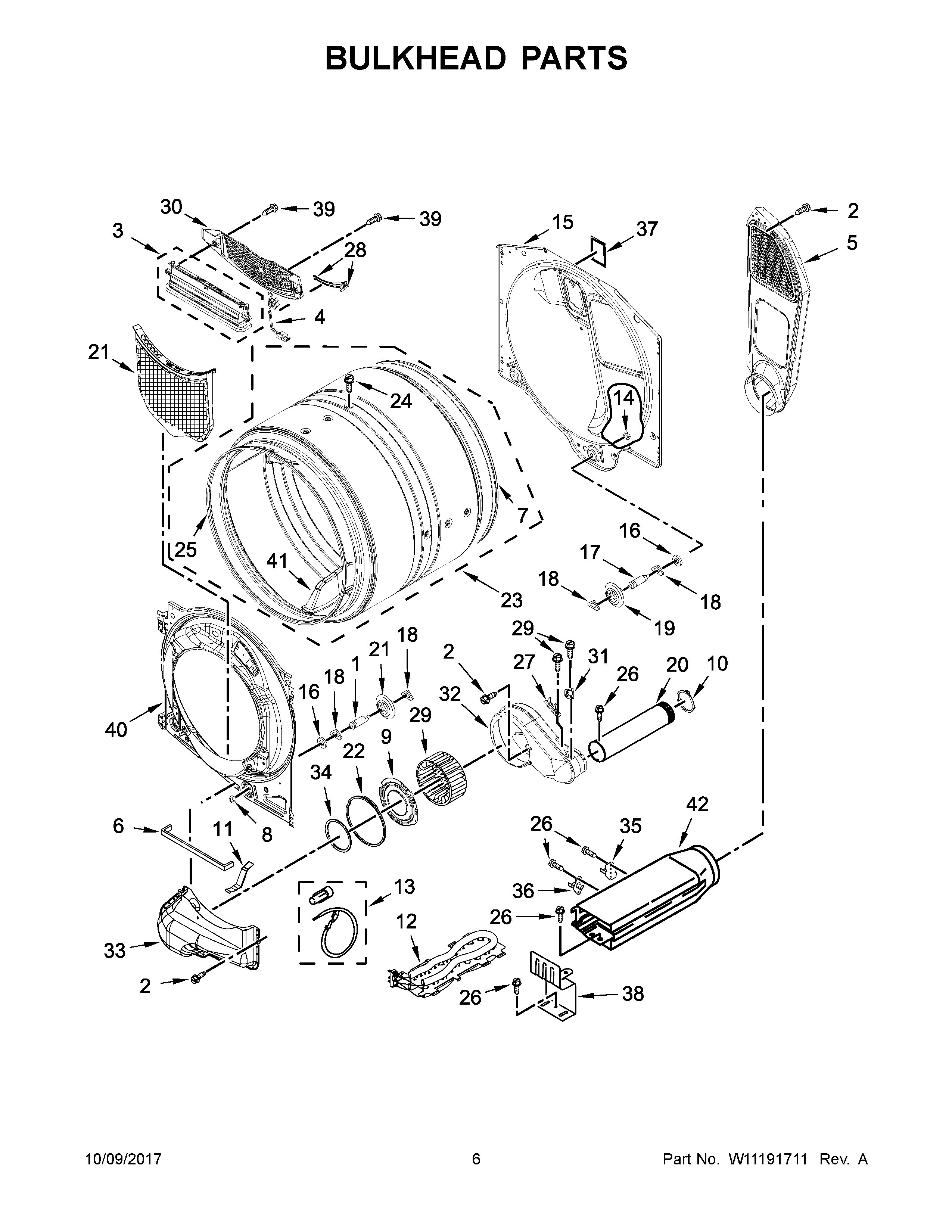

CED7464GW1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	HOUSNG-DRYER LINT
4	WPW10298258 Whirlpool Wire Harness
5	W11677720 Whirlpool Air Duct
6	W11676493 Whirlpool Seal Assembly
7	280114 Whirlpool Dryer Drum Seal
8	WPW10080210 Whirlpool Nut
9	W10211901 Whirlpool Cover Assembly
10	WPW10344699 Whirlpool Collar
11	W10414388 Whirlpool Clip
12	WP3387747 Whirlpool Dryer Heating Element
13	279457 Whirlpool Dryer Heating Element Wide Spade Connection
14	WPW10080190 Whirlpool Nut
15	W11299300 Whirlpool Bulkhead Assembly
16	W11236646 Whirlpool Washer Assembly
17	SHAFT
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	WPW10314173 Whirlpool Dryer Drum Support Wheel
20	WPW10342188 Whirlpool Exhaust Pipe
21	SCREEN – LINT. ALPHA W/FELT
22	WP697770 Whirlpool Blower Cover Plate Seal
23	W10508188 Whirlpool Drum
24	W10853898 Whirlpool Screw
25	W11193479 Whirlpool Seal
26	WP693995 Whirlpool Screw
27	FUSE-THRML
28	WP3387223 Whirlpool Electrode Assembly
29	WP697772 Whirlpool Dryer Blower Wheel
30	W11125442 Whirlpool Outer Grille
31	WP8557403 Whirlpool Thermostat
32	WPW10211911 Whirlpool Housing
33	WPW10211896 Whirlpool Duct Lint
34	W10211899 Whirlpool Seal
35	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
36	WP8577274 Whirlpool Dryer Thermistor
37	W11409002 Whirlpool Pad
38	8066099 Whirlpool Bracket
39	W11590579 Whirlpool Screw
40	W11712678 Whirlpool Bulkhead Assembly
41	W10416098 Whirlpool Baffle Assembly
42	W10802681 Whirlpool Box Assembly
