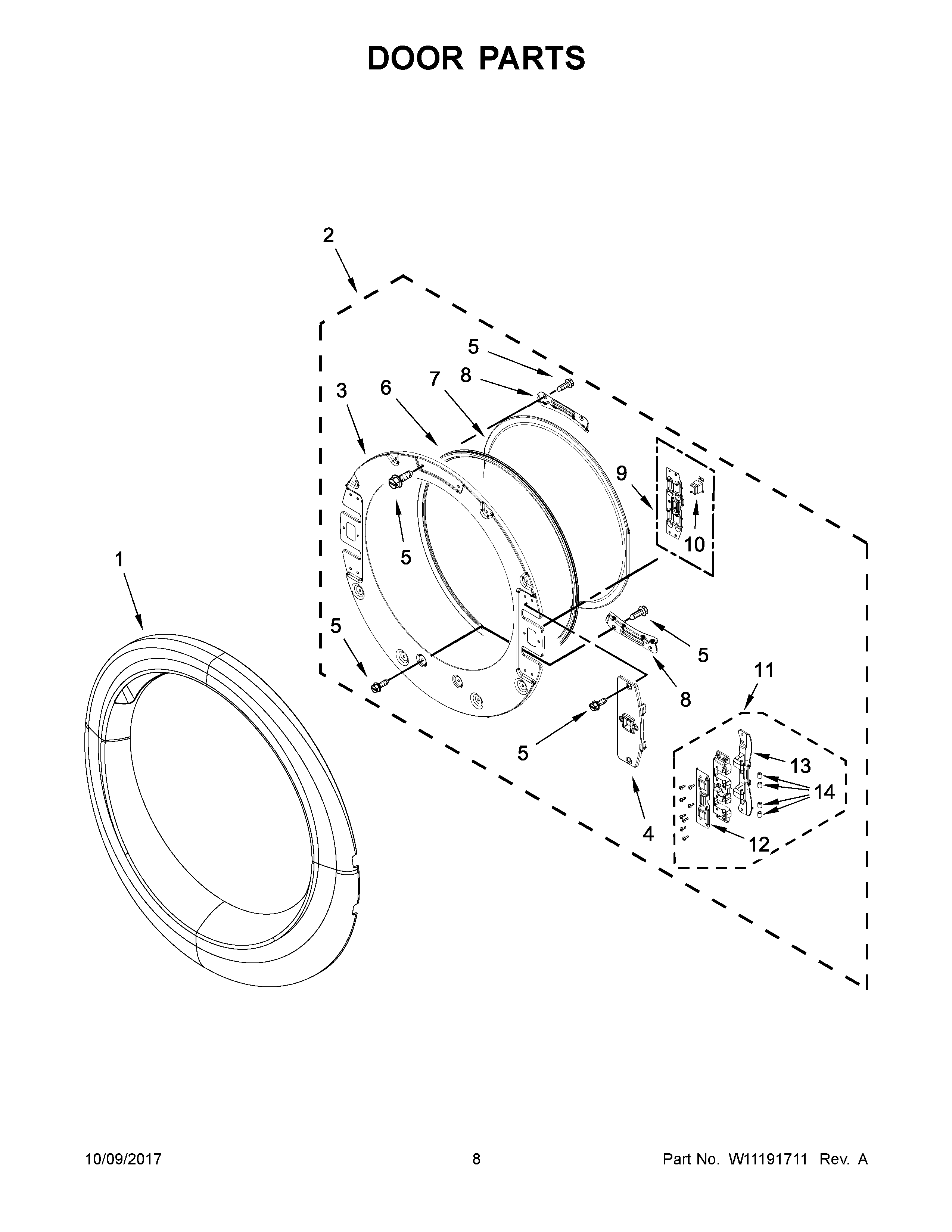

CED7464GW1 05 – DOOR PARTS

CED7464GW1 05 – DOOR PARTS

Written by

in

CED7464GW1 05 – DOOR PARTS

Products

PositionProduct
1W10772479 Whirlpool Window
2W11251345 Whirlpool Door
3DOOR, INNER
4W10772469 Whirlpool Door Catch Cover
5SCREW
6W11126230 Whirlpool Seal
7W10823368 Whirlpool Window Assembly
8W10208252 Whirlpool Retainer
9WPW10208254 Whirlpool Catch
10W11240283 Whirlpool Catch Assembly
11HINGE
12WPW10208419 Whirlpool Plate
13HINGE
14WPW10208398 Whirlpool Hinge Pin Cap
