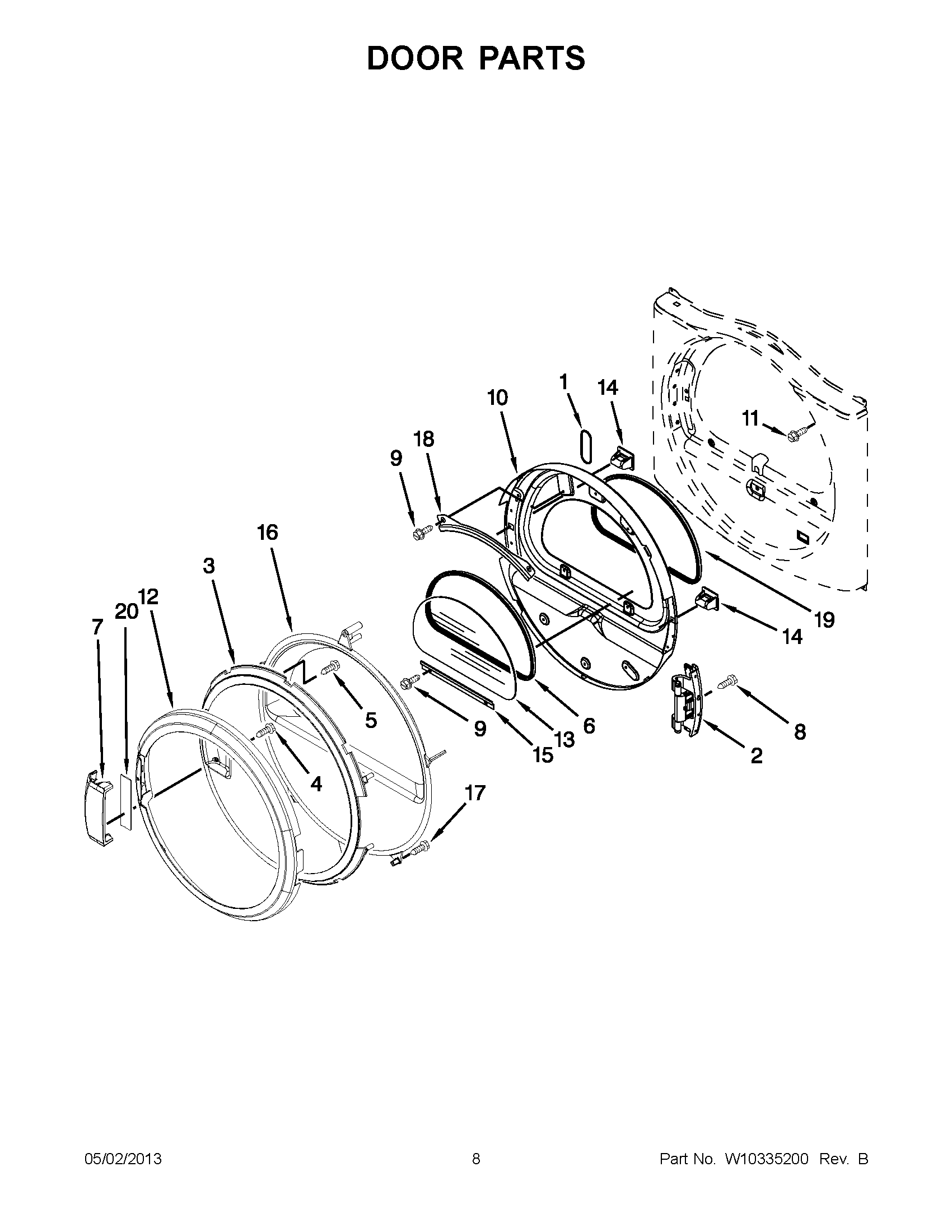

CED8990XW0 04 – DOOR PARTS

Products

Position	Product
1	8565119 Whirlpool Plug
2	ASSEMBLY, DOOR HINGE
3	ASSEMBLY, DOOR INTERMEDIATE
4	SCREW
5	3400618 Whirlpool Screw
6	W11706993 Whirlpool Seal
8	WPW10159996 Whirlpool Screw
9	WP3373329 Whirlpool Dishwasher Screw
10	W11690171 Whirlpool Door Assembly
11	WP355515 Whirlpool Screw
12	OUTER RING, DOOR
13	WPW10286878 Whirlpool Window
14	279570 Whirlpool Dryer Door Latch Kit
15	W10822054 Whirlpool Retainer
16	WINDOW
17	WP8534022 Whirlpool Screw
18	8519356 Whirlpool Retainer
19	WPW10163915 Whirlpool Door Seal
20	WPW10112927 Whirlpool Control Pad
