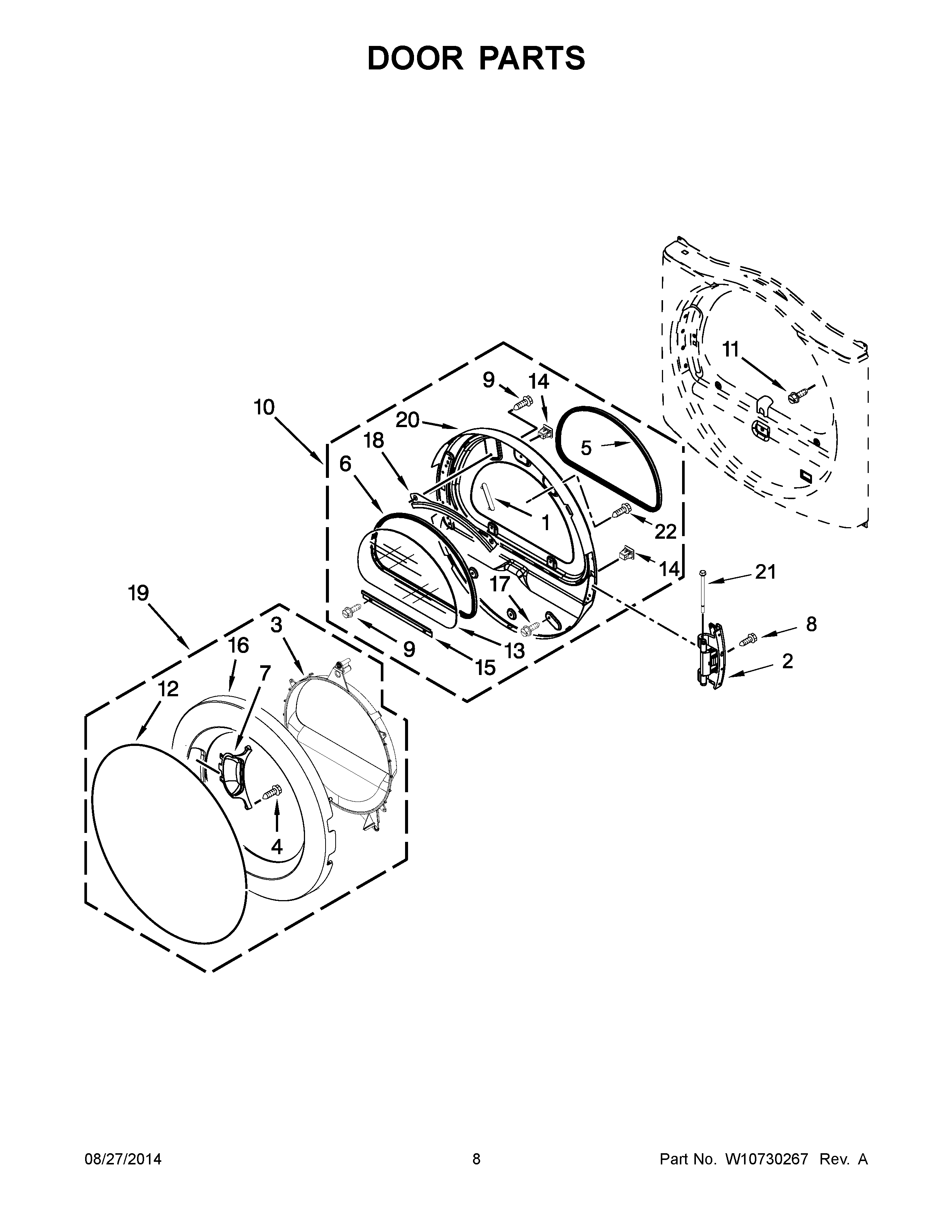

CED9050AW0 05 – DOOR PARTS

Products

Position	Product
1	WPW10256915 Whirlpool Label
2	ASSEMBLY, DOOR HINGE
3	W10283424 Whirlpool Window
4	SCREW
5	WPW10163915 Whirlpool Door Seal
6	W11706993 Whirlpool Seal
7	W10215754 Whirlpool Handle
8	WPW10159996 Whirlpool Screw
9	WP3373329 Whirlpool Dishwasher Screw
10	ASSEMBLY, INNER DOOR
11	WP355515 Whirlpool Screw
12	CABINET (NOT A SERVICEABLE PART)
13	WPW10286878 Whirlpool Window
14	279570 Whirlpool Dryer Door Latch Kit
15	W10822054 Whirlpool Retainer
16	W10215742 Whirlpool Door
17	WP308685 Whirlpool Microwave Screw
18	8519356 Whirlpool Retainer
19	W10215753 Whirlpool Door Assembly
20	W11690171 Whirlpool Door Assembly
21	8565087 Whirlpool Screw
22	W11116979 Whirlpool Screw
