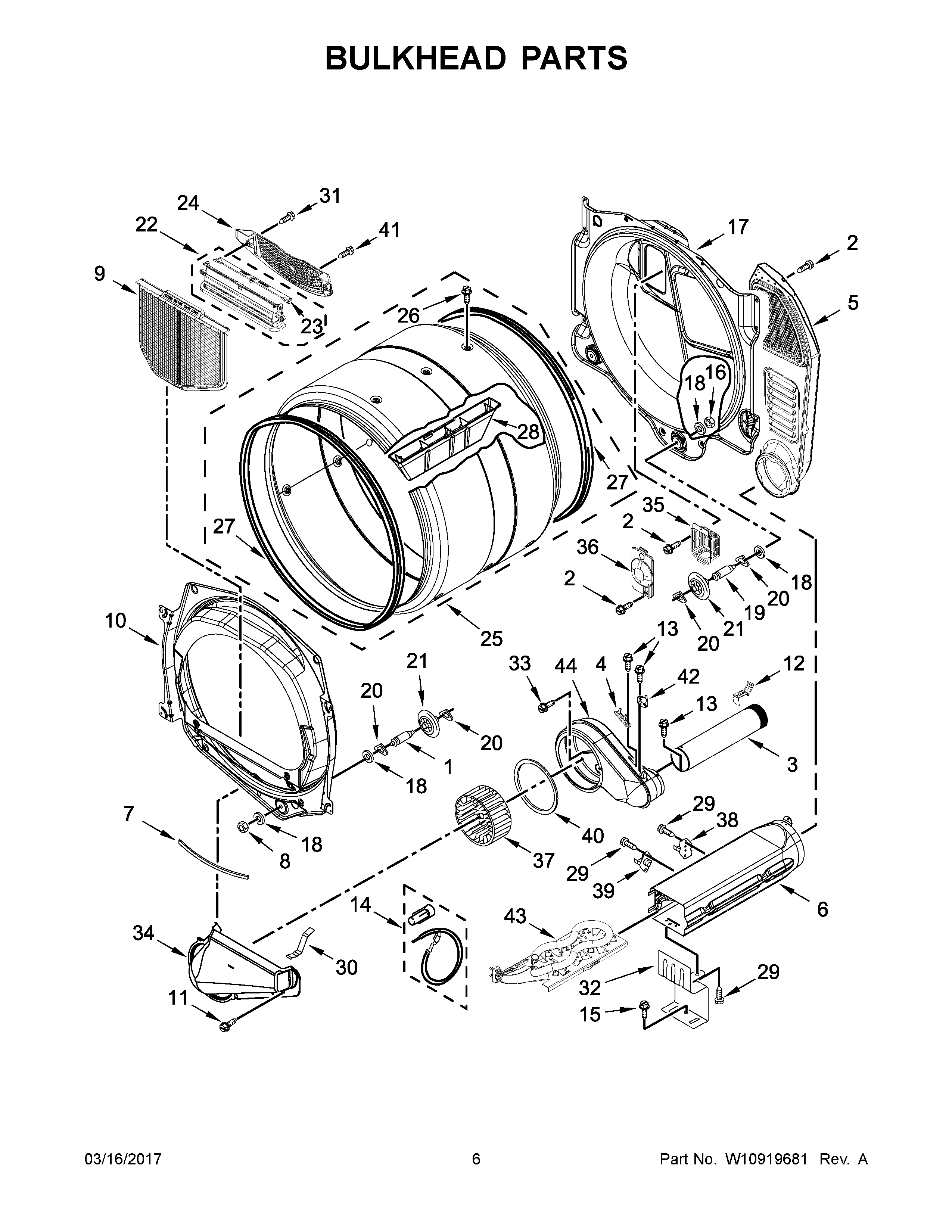

CED9150GW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP8563728 Whirlpool Exhaust Pipe
4	WP3392519 Whirlpool Dryer Thermal Fuse
5	WP3387911 Whirlpool Air Duct
6	W10802681 Whirlpool Box Assembly
7	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	W10120998 Whirlpool Dryer Lint Screen Filter
10	8565061 Whirlpool Bulkhead Assembly
11	W11693756 Whirlpool Screw Assembly
12	W11684573 Whirlpool Clip Assembly
13	WP90767 Whirlpool Screw
14	279457 Whirlpool Dryer Heating Element Wide Spade Connection
15	WP693995 Whirlpool Screw
16	WPW10080190 Whirlpool Nut
17	WPW10080170 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	W11219327 Whirlpool Grille Outlet
23	W11222846 Whirlpool Door
24	W11086603 Whirlpool Dryer Link Screen Air Grille
25	W10865330 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	W10852390 Whirlpool Drum Baffle
30	WP8066208 Whirlpool Clip
31	WP3387230 Whirlpool Screw
32	8066099 Whirlpool Bracket
33	WP489463 Whirlpool Refrigerator Screw
34	WPW10128606 Whirlpool Lint Duct
35	8578825 Whirlpool Bracket
36	W11226088 Whirlpool Lens Assembly
37	WHEEL
38	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
39	THRMST-FIX
40	WP697770 Whirlpool Blower Cover Plate Seal
42	WP8577274 Whirlpool Dryer Thermistor
43	W10864898 Whirlpool Dryer Heating Element
44	W10888146 Whirlpool Housing
