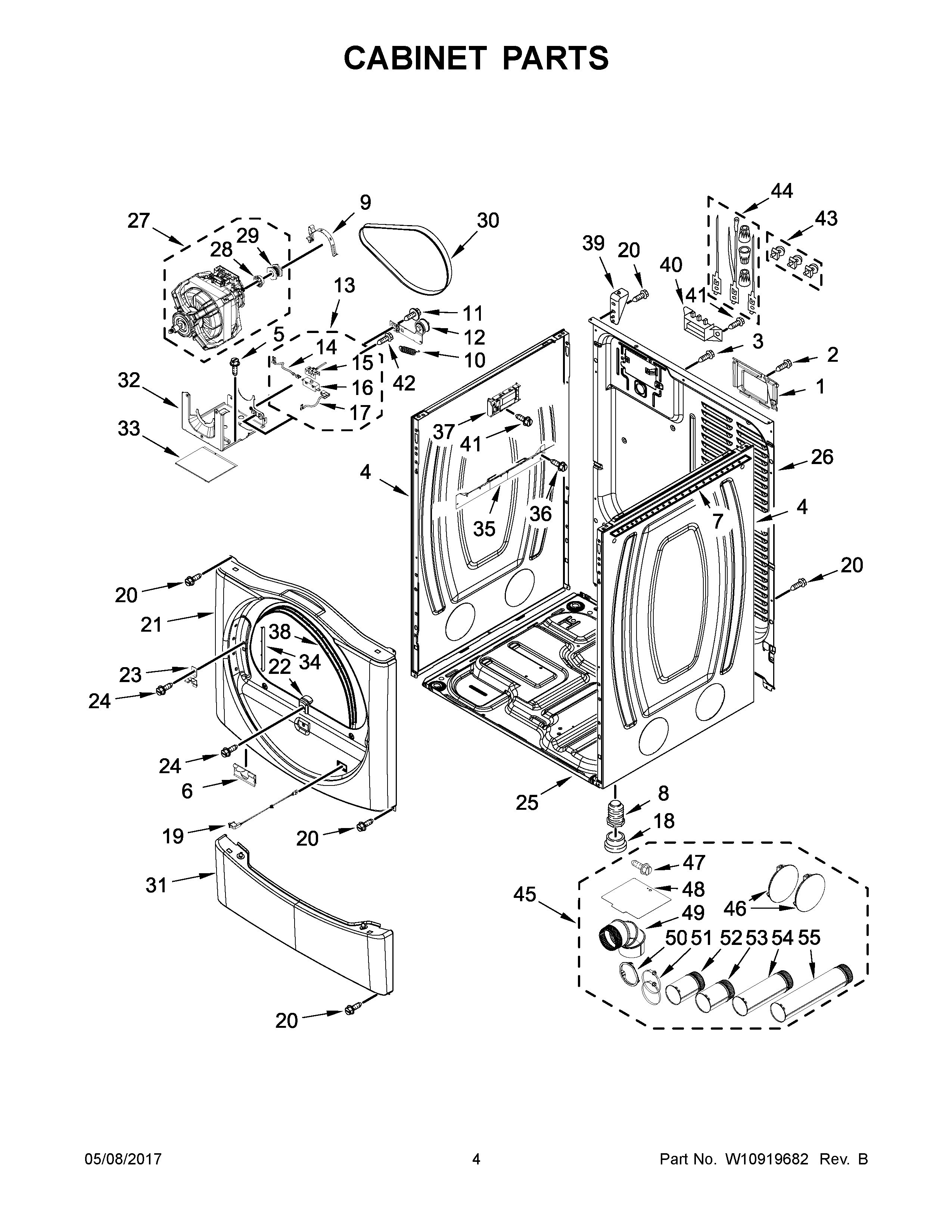

CED9160GW0 03 – CABINET PARTS

CED9160GW0 03 – CABINET PARTS

Written by

in

CED9160GW0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4W10542714 Whirlpool Panel
5SCREW
6W11295573 Whirlpool Clip
7Seal, Foam
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10344193 Whirlpool Idler Pulley
143398948 Whirlpool Wire
15WP8066120 Whirlpool Lever Assembly
16279782 Whirlpool Lid Switch
17W10167612 Whirlpool Wire
18WP3391943 Whirlpool Foot Boot
19WPW10350910 Whirlpool Door Switch
20WP488729 Whirlpool Refrigerator Door Screw
21W10874032 Whirlpool Panel
228580015 Whirlpool Ramp
23WP8565122 Whirlpool Strike Assembly
24WP308685 Whirlpool Microwave Screw
25W11215531 Whirlpool Base
26PANEL, REAR
27W10841144 Whirlpool Drive Motor
28WP3393657 Whirlpool Belt Retainer
29WP8066184 Whirlpool Dryer Motor Pulley
30WPW10131172 Whirlpool Belt
31WP8540621 Whirlpool Toe Panel
32WP3387118 Whirlpool Base Assembly
33W11113654 Whirlpool Pad
348565043 Whirlpool Plug
35WP8563727 Whirlpool Bracket
37CONTROL BOARD
38WP3387242 Whirlpool Seal
39W10137398 Whirlpool Block
40WP3397659 Whirlpool Terminal Block
42WP98129 Whirlpool Screw
43279393 Whirlpool Terminal Block Screw and Nut Kit
44279318 Whirlpool Terminal
45W10470674 Whirlpool Dryer Side Vent Exhaust Kit
46WPW10404617 Whirlpool Plug Assembly
48WPW10354249 Whirlpool Cover
49WPW10416072 Whirlpool Elbow
50WPW10344699 Whirlpool Collar
51WP696392 Whirlpool Hose Clamp
52WPW10331278 Whirlpool Exhaust Pipe
53WP8563748 Whirlpool Exhaust Pipe
54WP8563747 Whirlpool Exhaust Pipe
55WP8563749 Whirlpool Exhaust Pipe
