CEDC392JQ0 01 – SECTION

CEDC392JQ0 01 – SECTION

Written by

in

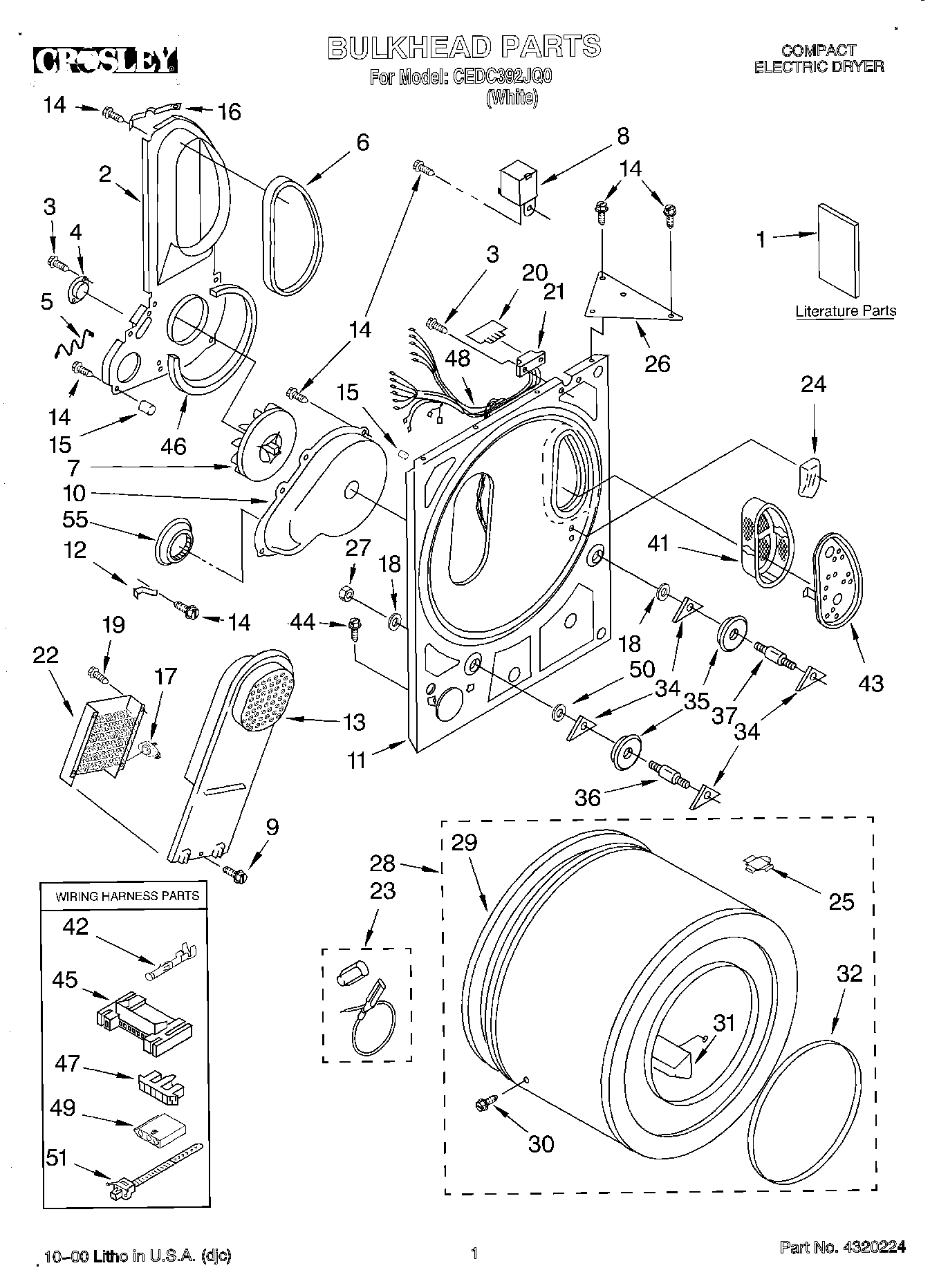

CEDC392JQ0 01 – SECTION

Products

PositionProduct
1WPL LIT9831728
1Literature Parts (Label, Operating Instructions)
1Literature Parts (Guide, Use & Care)
2Air Duct Assembly
3WPW10139210 Whirlpool Screw
4WP694674 Whirlpool Cycling Thermostat
5345965 Whirlpool Guard
6SEAL
7WP696426 Whirlpool Wheel
8WP694419 Whirlpool Buzzer Adjuster
9WP489463 Whirlpool Refrigerator Screw
10696419 Whirlpool Housing
11279848 Whirlpool Bulkhead
12279771 Whirlpool Clip
13WP3401380 Whirlpool Box
14SCREW
15W10491983 Whirlpool Tine Tip
16345396 Whirlpool Clip
17WP3404153 Whirlpool Thermostat
18WP348197 Whirlpool Washer Assembly
19WP90767 Whirlpool Screw
20WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
213391885 Whirlpool Connector
22WP3403591 Whirlpool Element
23279457 Whirlpool Dryer Heating Element Wide Spade Connection
24SENSOR KIT
258066086 Whirlpool Plug
26345325 Whirlpool Gusset
27WP3359452 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30WPW10109200 Whirlpool Screw
31685207 Whirlpool Dryer Baffle
32WP3394508 Whirlpool Bearing Ring
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
42WP94614 Whirlpool Terminal
44WP3390631 Whirlpool Screw
453395683 Whirlpool Connector
468066094 Whirlpool Seal
47Connector, Timer
48Harness, Wiring
493936144 Whirlpool Connector
50WP3388703 Whirlpool Washer
51WP3391018 Whirlpool Wire Tie
55W11233063 Whirlpool Shield Assembly
55350938 Whirlpool Spray Gun
55799344 Whirlpool Refrigerator Paint
55350930 Whirlpool White Spray Paint
5572017 Whirlpool Appliance Touch-Up Paint White
