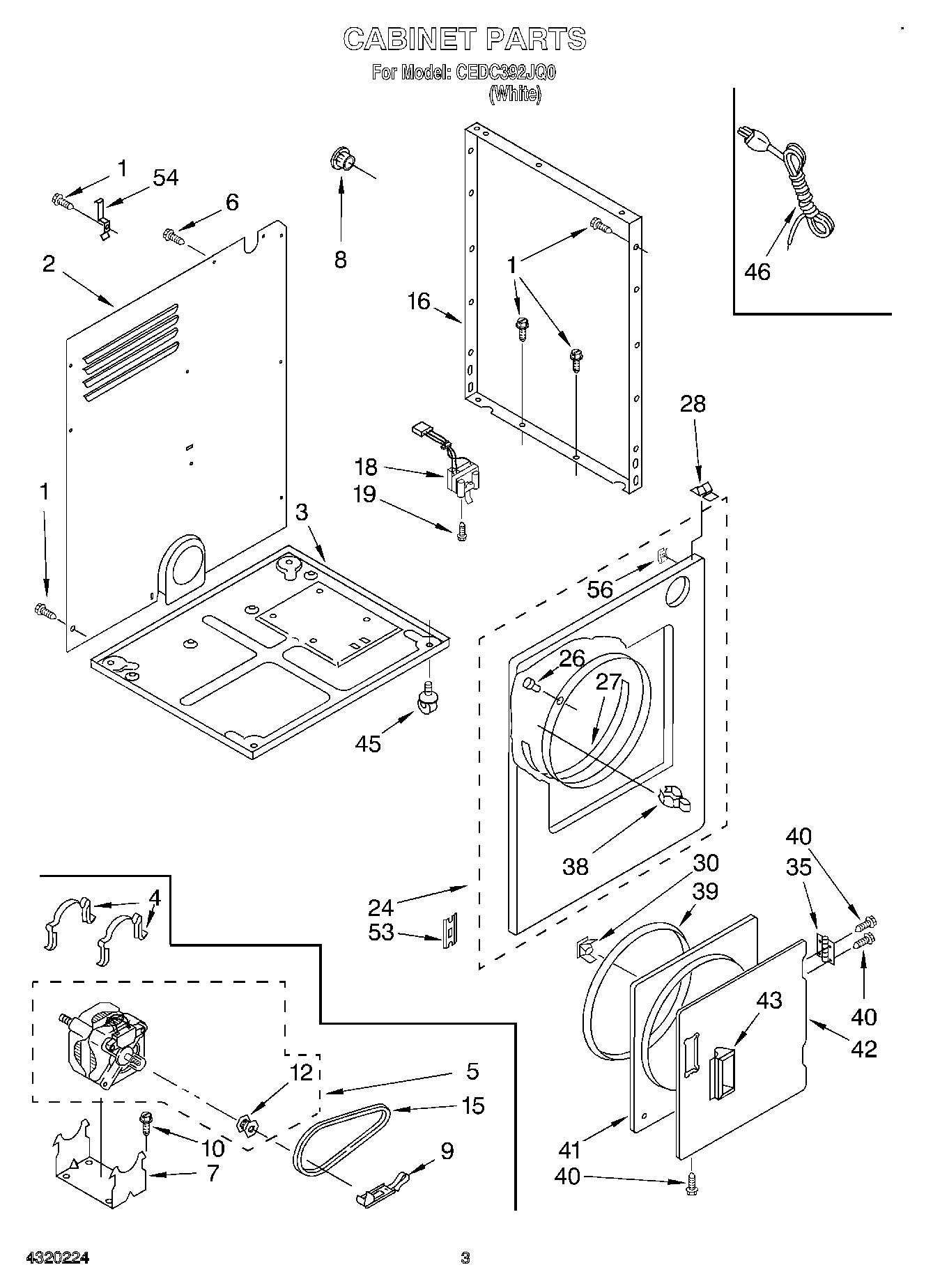

CEDC392JQ0 02 – SECTION

Products

Position	Product
1	SCREW
2	280048 Whirlpool Rear Panel
3	WP348726 Whirlpool Base Assembly
4	WP660658 Whirlpool Clamp
5	WPW10448901 Whirlpool Drive Motor
6	W10850756 Whirlpool Screw
7	696541 Whirlpool Base
8	8066084 Whirlpool Clip
9	WP691366 Whirlpool Dryer Idler Pulley Assembly
10	WP3390631 Whirlpool Screw
12	8066051 Whirlpool Motor Pulley
15	3394652 Whirlpool Drum Belt
16	Panel, Side (2) (White)
18	WP3406105 Whirlpool Door Switch
19	WP3395530 Whirlpool Screw
24	280044 Whirlpool Panel
26	279220 Whirlpool Clip
27	279264 Whirlpool Bearing and Seal Kit
28	WP345670 Whirlpool Lock
30	WP3389441 Whirlpool Door Catch
35	WP348023 Whirlpool Hinge
38	279570 Whirlpool Dryer Door Latch Kit
39	W11613302 Whirlpool Door Seal
40	WP694091 Whirlpool Screw
41	280077 Whirlpool Door
42	WP348205 Whirlpool Door
43	WP686711 Whirlpool Door Handle
45	279127 Whirlpool Caster
46	Cord, Power
53	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
54	345790 Whirlpool Bracket
56	WP98234 Whirlpool Nut
