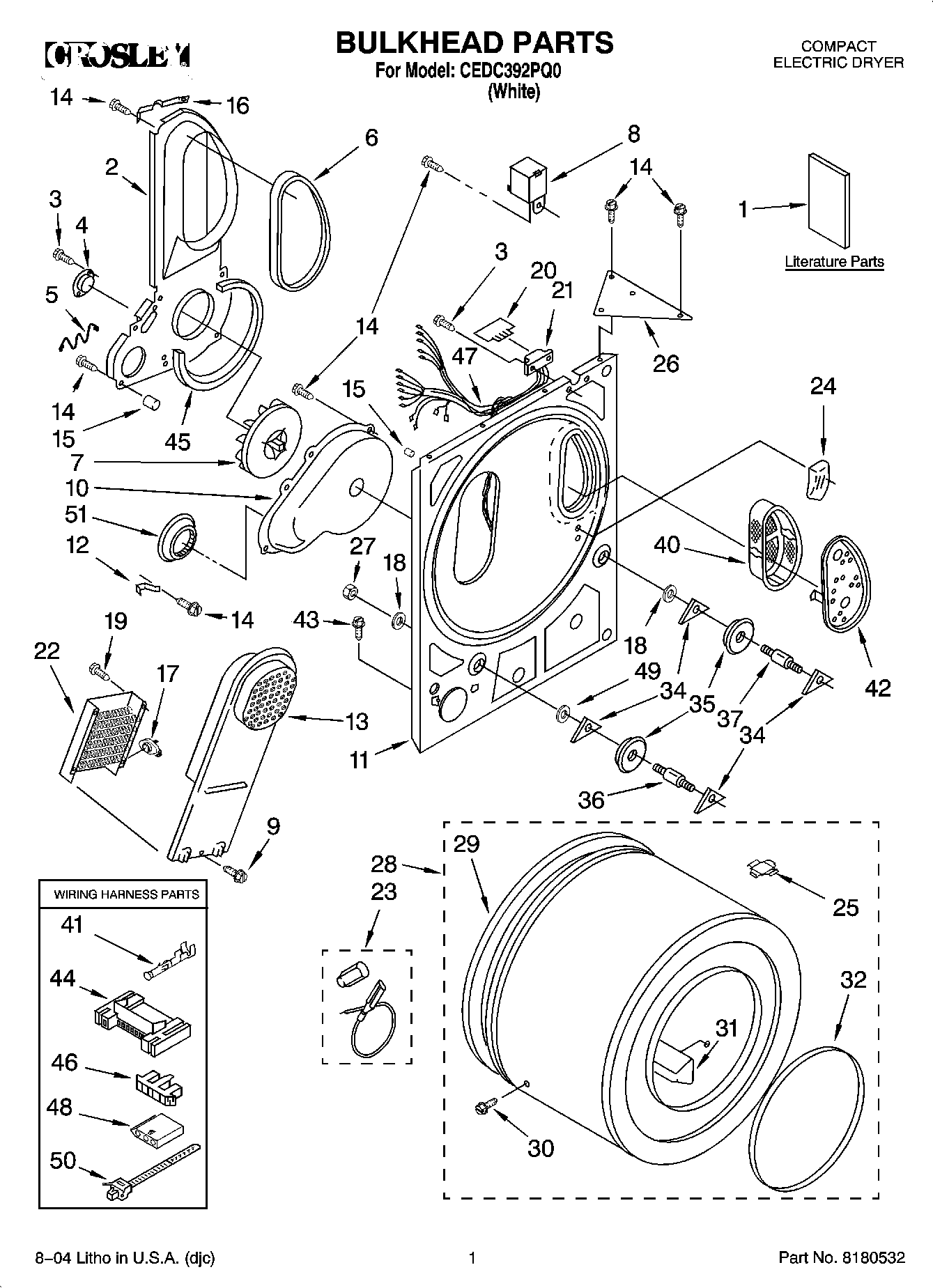

CEDC392PQ0 01 – BULKHEAD PARTS
Written by
in
CEDC392PQ0 01 – BULKHEAD PARTS
Products
Position
Product
1
Guide, Use & Care
1
Label, Operating Instructions
1
Label, Wiring Diagram
2
Air Duct Assembly
3
WPW10139210 Whirlpool Screw
4
WP694674 Whirlpool Cycling Thermostat
5
345965 Whirlpool Guard
6
SEAL
7
WP696426 Whirlpool Wheel
8
WP694419 Whirlpool Buzzer Adjuster
9
WP489463 Whirlpool Refrigerator Screw
10
696419 Whirlpool Housing
11
279848 Whirlpool Bulkhead
12
279771 Whirlpool Clip
13
WP3401380 Whirlpool Box
14
SCREW
15
W10491983 Whirlpool Tine Tip
16
345396 Whirlpool Clip
17
WP3404153 Whirlpool Thermostat
18
WP348197 Whirlpool Washer Assembly
19
WP90767 Whirlpool Screw
20
WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
21
3391885 Whirlpool Connector
22
WP3403591 Whirlpool Element
23
279457 Whirlpool Dryer Heating Element Wide Spade Connection
24
SENSOR KIT
25
8066086 Whirlpool Plug
26
345325 Whirlpool Gusset
27
WP3359452 Whirlpool Nut
28
3391834 Whirlpool Drum
29
SEAL
30
WPW10109200 Whirlpool Screw
31
685207 Whirlpool Dryer Baffle
32
WP3394508 Whirlpool Bearing Ring
34
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35
349241T Whirlpool Dryer Drum Support Roller Kit
36
SHAFT SUPPORT ROLLER DRYER
37
SHAFT SUPPORT ROLLER DRYER
40
W10828351 Whirlpool Dryer Filter Lint Screen with Cover
41
WP94614 Whirlpool Terminal
43
WP3390631 Whirlpool Screw
44
3395683 Whirlpool Connector
45
8066094 Whirlpool Seal
46
Connector, Timer
47
Harness, Wiring
48
3936144 Whirlpool Connector
49
WP3388703 Whirlpool Washer
50
WP3391018 Whirlpool Wire Tie
51
W11233063 Whirlpool Shield Assembly
←
