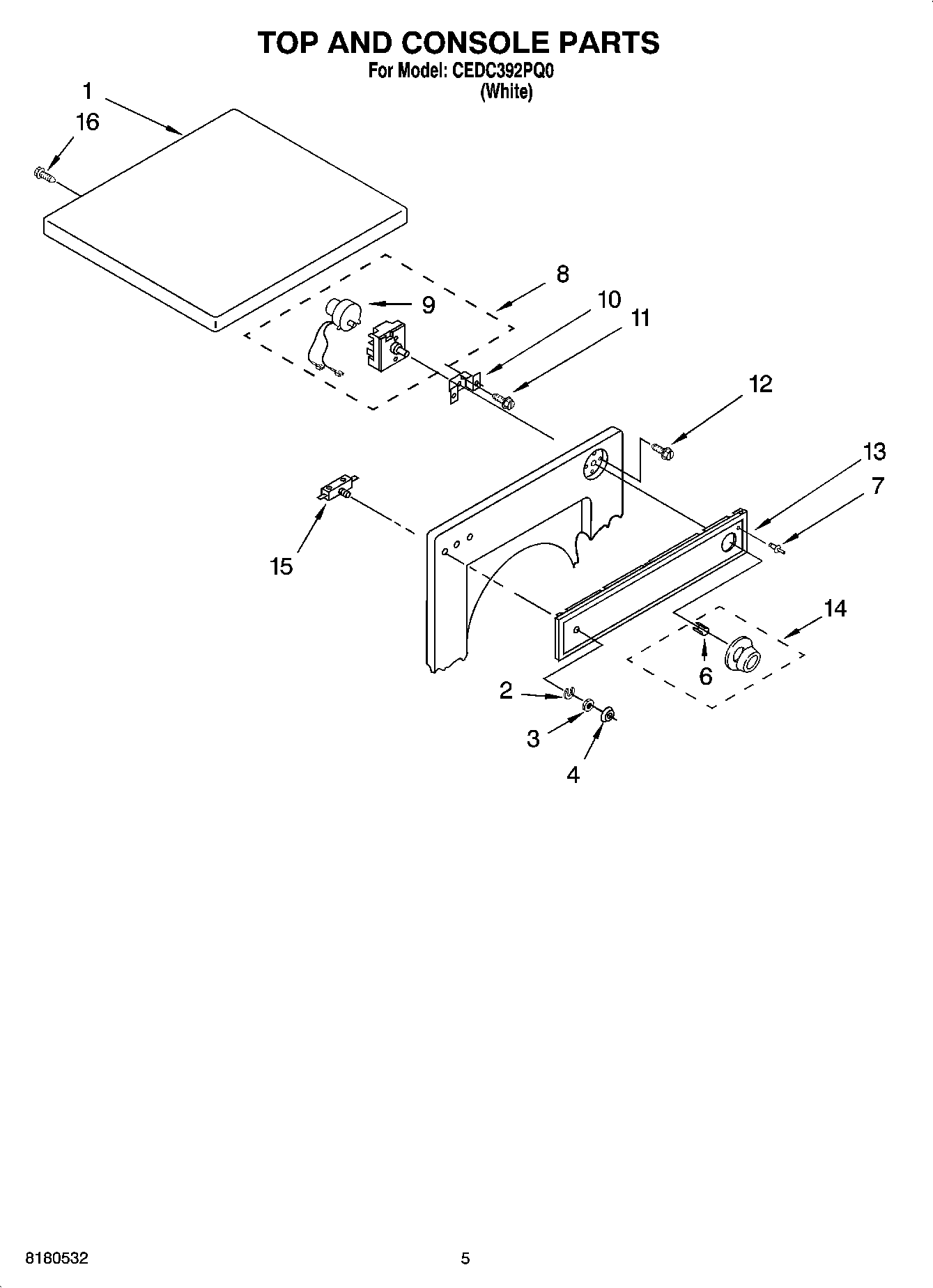

CEDC392PQ0 03 – TOP AND CONSOLE PARTS, OPTIONAL PARTS (NOT INCLUDED)

CEDC392PQ0 03 – TOP AND CONSOLE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

CEDC392PQ0 03 – TOP AND CONSOLE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
1345703 Whirlpool White Maintop
2Lockwasher
3Nut, Hex
4Ring, Trim
6WP688805 Whirlpool Spring Clip
7Rivet, Plastic (4)
8WP8563881 Whirlpool Timer
9(Timer Motor Not Serviceable)
10348171 Whirlpool Bracket
11WP486579 Whirlpool Air Conditioner Screw
12WPW10139210 Whirlpool Screw
13Panel, Control
14Timer Knob & Dial
15Switch, Push-To-Start
16SCREW
