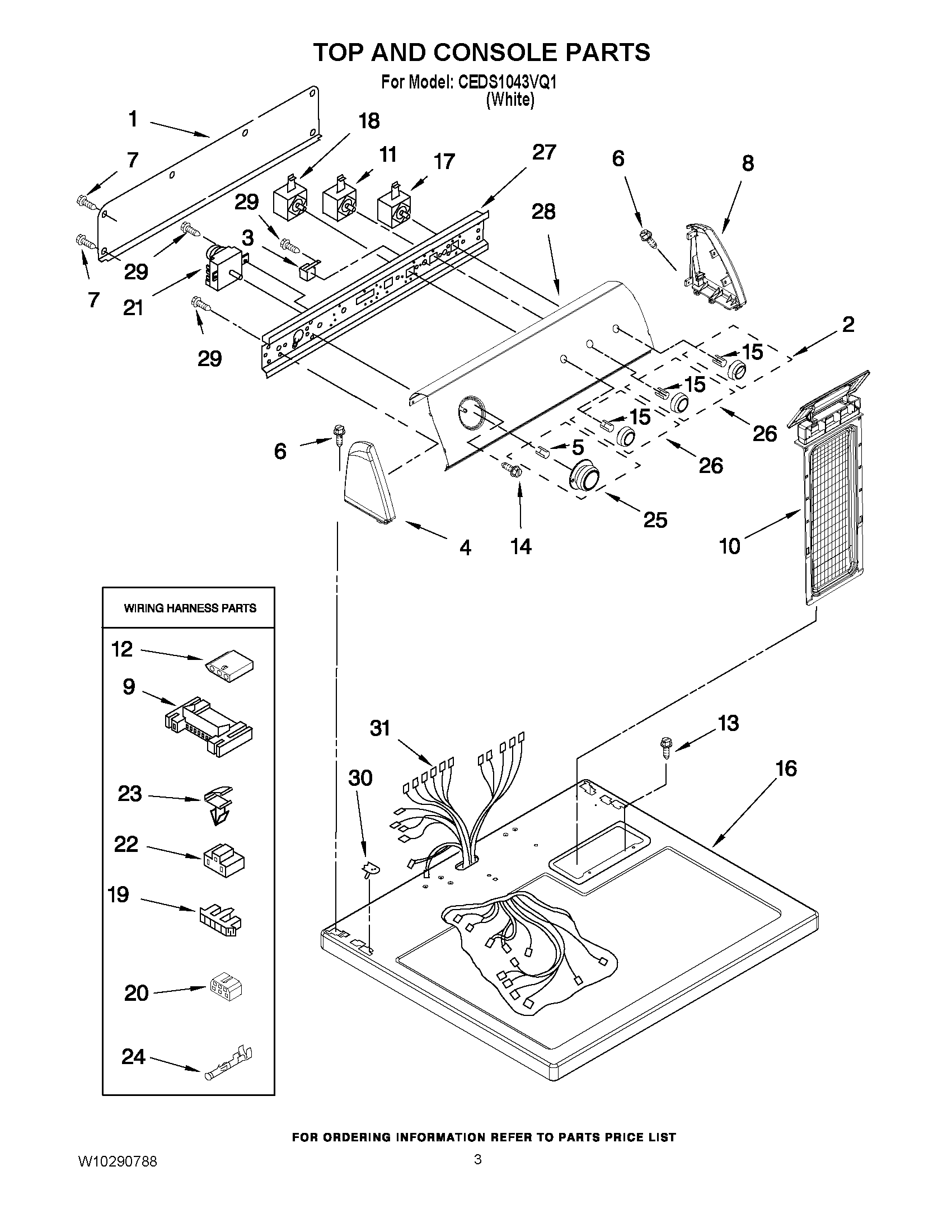

CEDS1043VQ1 02 – TOP AND CONSOLE PARTS

CEDS1043VQ1 02 – TOP AND CONSOLE PARTS

Written by

in

CEDS1043VQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Knob, Push-To-Start
3WP694419 Whirlpool Buzzer Adjuster
5WP688805 Whirlpool Spring Clip
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
113405152 Whirlpool Switch Assembly
123936144 Whirlpool Connector
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP8536939 Whirlpool Spring Clip
16Top
17WP3398094 Whirlpool Push To Start Switch
18WP3399639 Whirlpool Switch
19Connector, Timer
20Block, Disconnect
21WPW10185982 Whirlpool Timer
223401144 Whirlpool Connector
23WP3394427 Whirlpool Clip
24WP94614 Whirlpool Terminal
25WP8557455 Whirlpool Knob Timer
26KNOB
27Bracket, Control
28Panel, Control
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31HARNESS, WIRING
